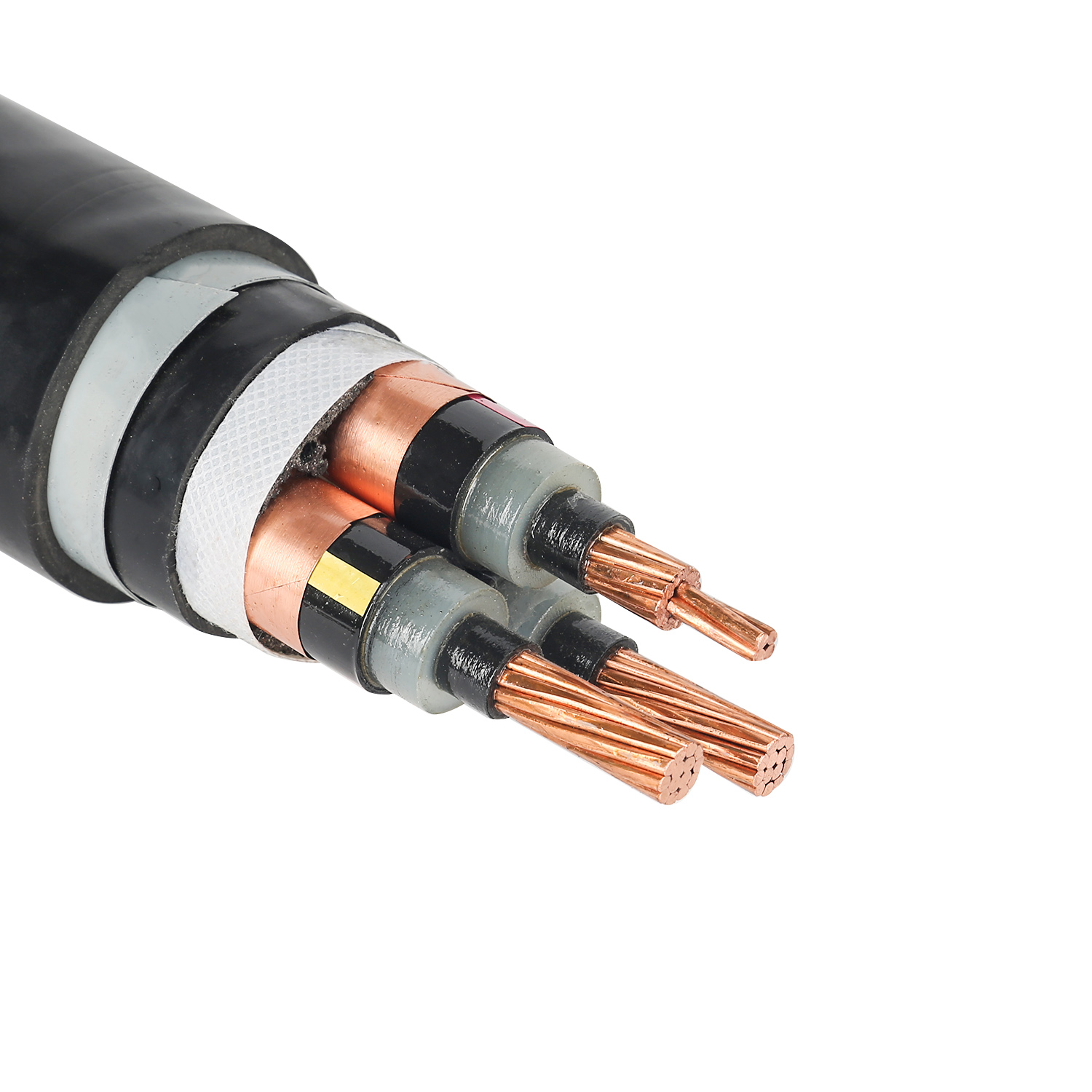

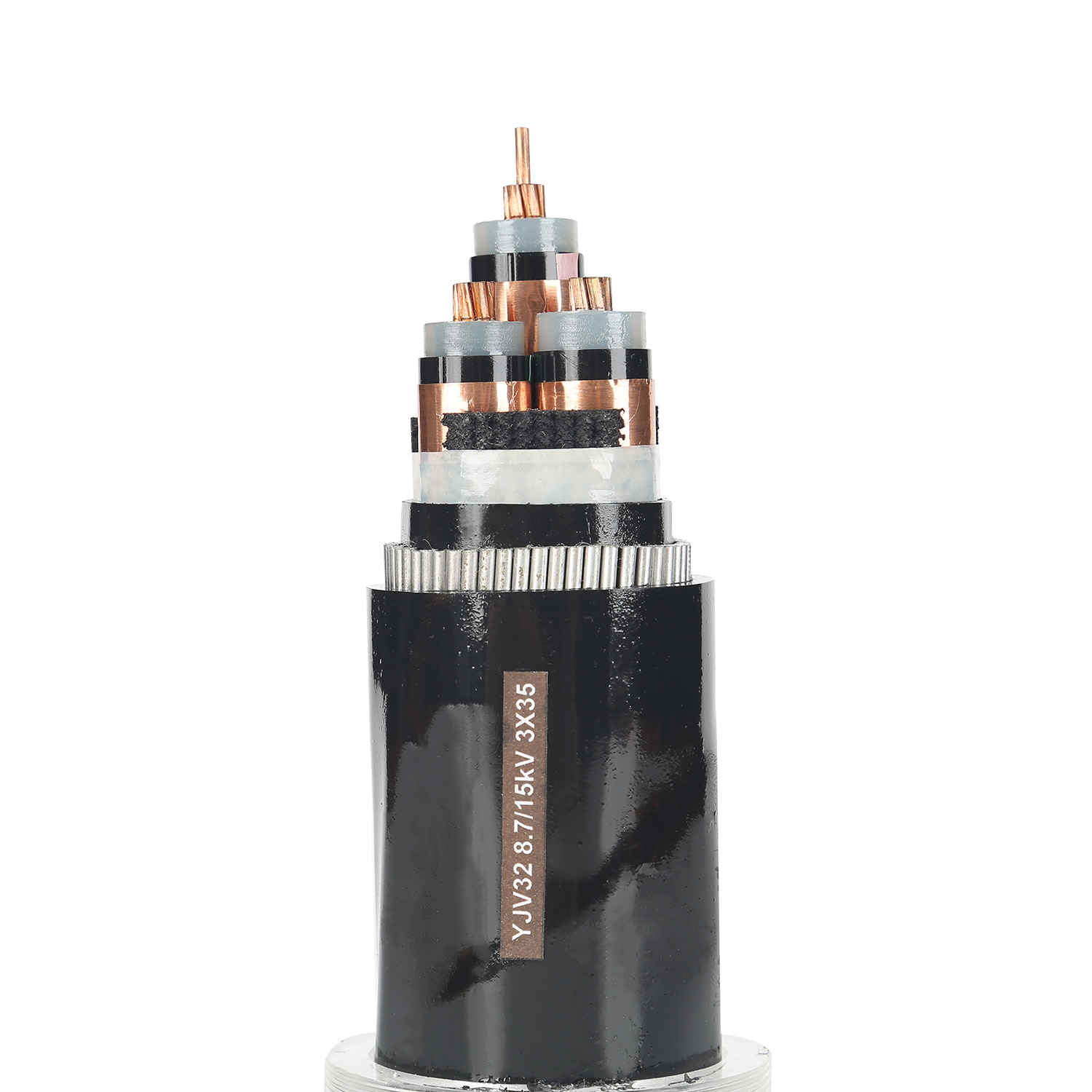

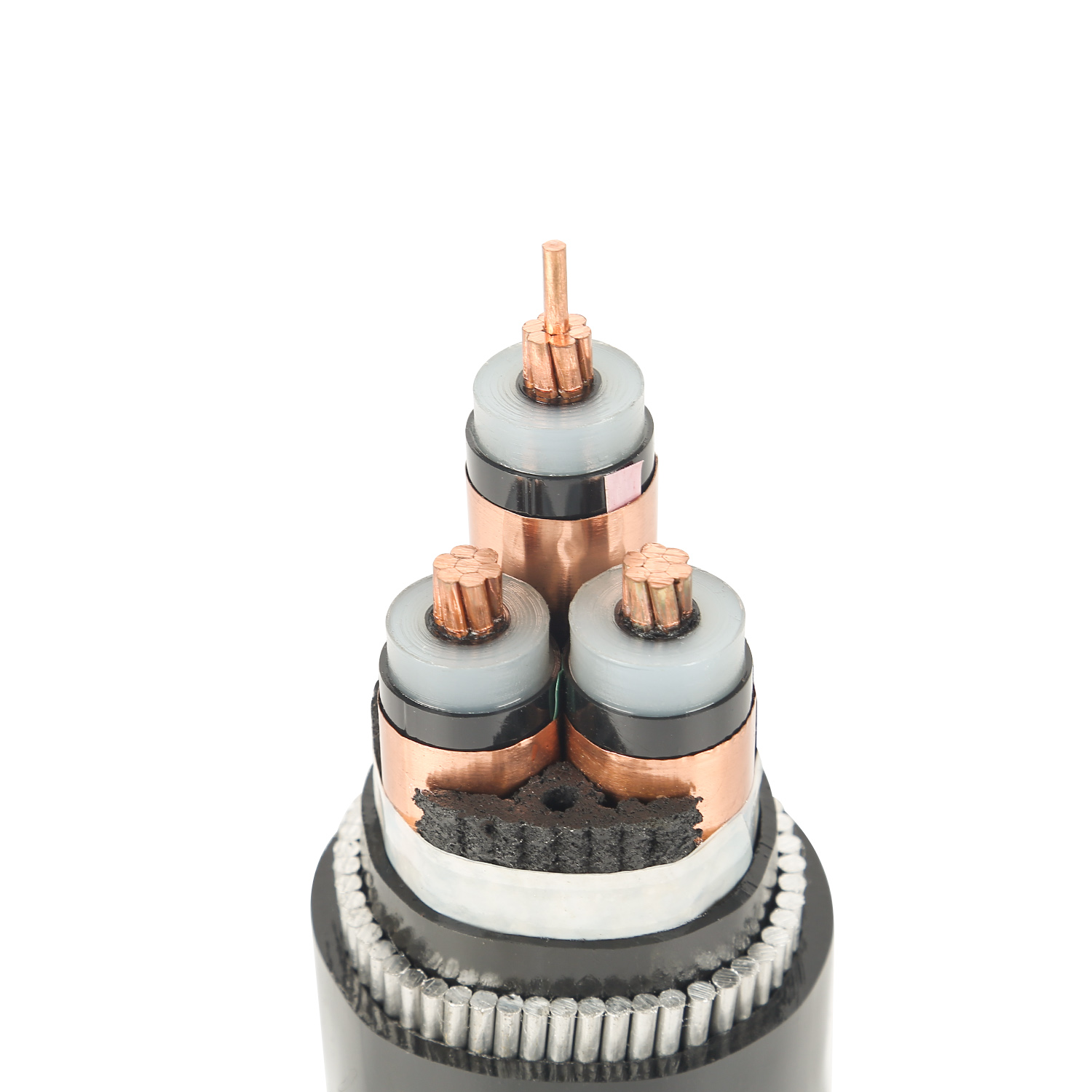

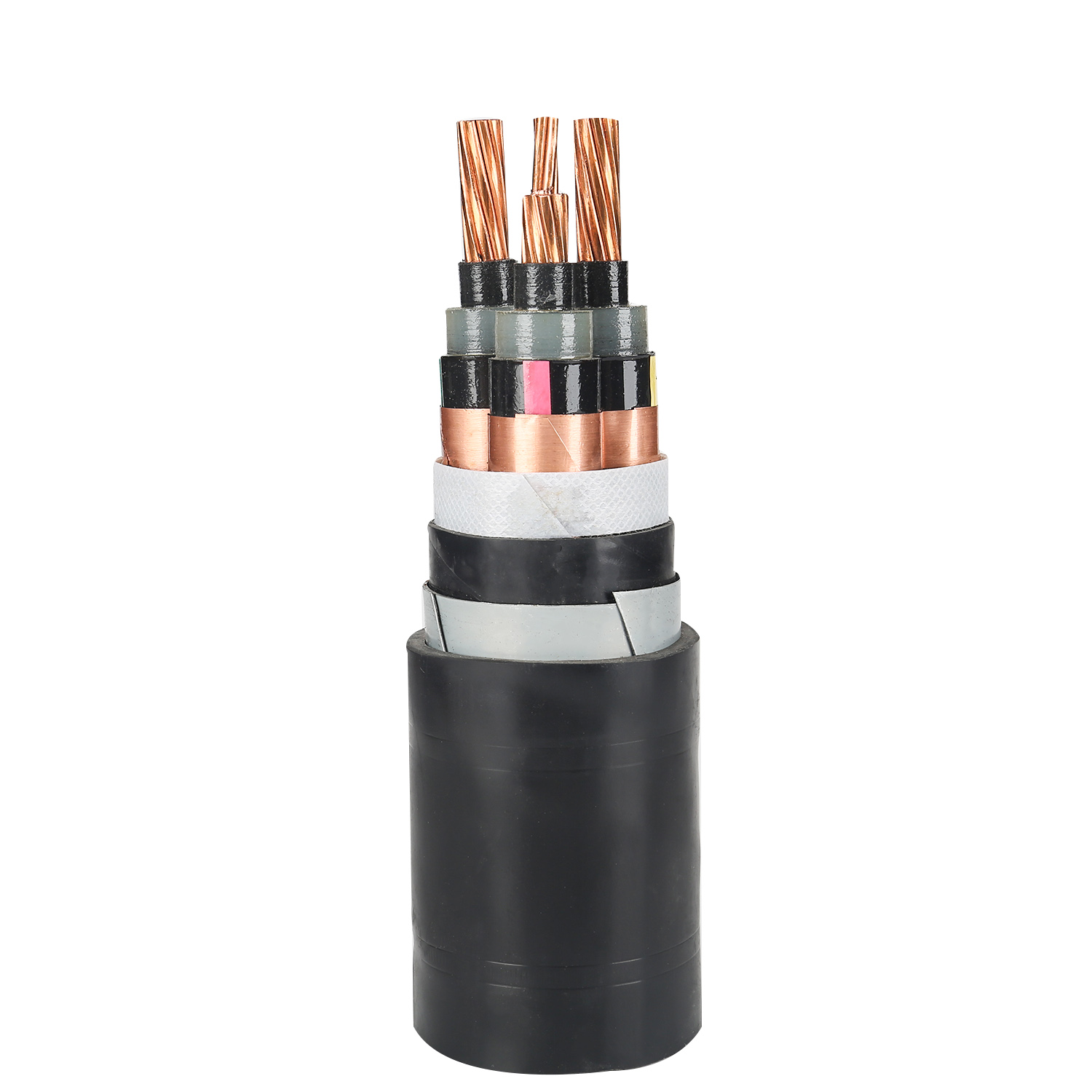

Triple Core XLPE Cable ya Nguvu iliyowekwa na waya wa chuma kwa matumizi ya kati ya voltage

5 0 Maoni

Wingi:




Uliza Ongeza kwenye Kikapu

Maelezo ya bidhaa

1.8/3 (3.6) KV, XLPE iliyoingizwa mkanda wa kivinjari cha PVC iliyotiwa nguvu

Core-Core, Cu/XLPE/ATA/PVC au Al/XLPE/ATA/PVC (Jedwali 17)

Conductor Nominal Eneo	Unene wa inulation	Takriban. Kifuniko cha ndani Unene	Saizi ya waya ya silaha	Nje Sheath Unene	Takriban. Kipenyo cha jumla	Takriban. Uzito wa cable		Kiwango Urefu kwa Ngoma
Conductor Nominal Eneo	Unene wa inulation	Takriban. Kifuniko cha ndani Unene	Saizi ya waya ya silaha	Nje Sheath Unene	Takriban. Kipenyo cha jumla	Shaba	Aluminium	Kiwango Urefu kwa Ngoma
mm²	mm	mm	mm	mm	mm	kilo/km		m
10	2.0	1.2	0.5	1.8	18	390	330	500
16	2.0	1.2	0.5	1.8	19	460	360	500
25	2.0	1.2	0.5	1.8	20	580	420	500
35	2.0	1.2	0.5	1.8	21	700	480	500
50	2.0	1.2	0.5	1.8	23	840	550	500
70	2.0	1.2	0.5	1.8	24	1,080	650	500
95	2.0	1.2	0.5	1.8	26	1,360	770	500
120	2.0	1.2	0.5	1.8	28	1,620	880	500
150	2.0	1.2	0.5	1.8	29	1,920	990	500
185	2.0	1.2	0.5	1.9	31	2,300	1,150	500
240	2.0	1.2	0.5	1.9	33	2,890	1,380	500
300	2.0	1.2	0.5	2.0	36	3,510	1,610	500
400	2.0	1.2	0.5	2.1	37	4,380	1,950	500
d
630	2.4	1.3	0.5	2.4	47	7,000	2,970	500

Tatu-msingi, cu/xlpe/sta/pvc au al/xlpe/sta/pvc (Jedwali 18)

Conductor Nominal Eneo	Unene wa insulation	Takriban. Kifuniko cha ndani Unene	Saizi ya waya ya silaha	Nje Sheath Unene	Takriban. Kipenyo cha jumla	Takriban. Uzito wa cable		Kiwango Urefu kwa Ngoma
Conductor Nominal Eneo	Unene wa insulation	Takriban. Kifuniko cha ndani Unene	Saizi ya waya ya silaha	Nje Sheath Unene	Takriban. Kipenyo cha jumla	Shaba	Aluminium	Kiwango Urefu kwa Ngoma
mm²	mm	mm	mm	mm	mm	kilo/km		m
10	2.0	1.2	0.5	1.8	28	910	720	500
16	2.0	1.2	0.5	1.9	29	1,120	820	500
25	2.0	1.2	0.5	1.9	32	1,480	1,000	500
35	2.0	1.2	0.5	2.0	35	1,840	1,170	500
50	2.0	1.2	0.5	2.1	38	1,300	1,410	500
70	2.0	1.2	0.5	2.2	43	3,390	2,100	500
95	2.0	1.2	0.5	2.3	46	4,330	2,530	500
120	2.0	1.3	0.5	2.4	50	5,180	2,910	500
150	2.0	1.4	0.5	2.6	54	6,180	3,370	500
185	2.0	1.4	0.5	2.7	57	7,120	3,920	500
240	2.0	1.5	0.5	2.8	63	9,350	4,750	400
300	2.0	1.6	0.5	3.0	68	11,340	5,550	300
400	2.0	1.8	0.5	3.3	76	14,220	6,830	300
500	2.2	1.9	0.5	3.5	84	17,850	8,380	250

3.6/6 (7.2) KV, XLPE iliyowekwa ndani ya nguvu ya PVC iliyo na nguvu

Core-Core, Cu/XLPE/PVC au Al/XLPE/PVC (Jedwali 19)

Conductor Nominal Eneo	Unene wa insulation	Unene wa nje wa shehe	Takriban. Kwa jumla Kipenyo	Takriban. Uzito wa cable		Kiwango Urefu kwa Ngoma
Conductor Nominal Eneo	Unene wa insulation	Unene wa nje wa shehe	Takriban. Kwa jumla Kipenyo	Shaba	Aluminium	Kiwango Urefu kwa Ngoma
mm²	mm	mm	mm	kilo/km		m
10	2.5	1.8	15	320	260	500
16	2.5	1.8	18	390	290	500
25	2.5	1.8	20	500	340	500
35	2.5	1.8	21	610	400	500
50	2.5	1.8	22	750	450	500
70	2.5	1.8	24	970	550	500
95	2.5	1.8	25	1,250	660	500
120	2.5	1.8	27	1,500	760	500
150	2.5	1.8	28	1,790	860	500
185	2.5	1.9	30	2,150	1,000	500
240	2.6	1.9	33	2,770	1,250	500
300	2.8	2.0	35	3,400	1,500	500
400	3.0	2.1	39	4,280	1.850	500
500	3.2	2.2	43	5,400	2,280	500
630	3.2	2.4	47	6,830	2,800	500
800	3.2	2.5	51	8,570	3,400	400
1,000	3.2	2.6	56	10,590	4,110	300

Tatu-msingi, Cu/XLPE/PVC au Al/XLPE/PVC (Jedwali 20)

Conductor Nominal Eneo	Unene wa insulation	Unene wa nje wa shehe	Takriban. Kwa jumla Kipenyo	Takriban. Uzito wa cable		Urefu wa kawaida kwa Ngoma
Conductor Nominal Eneo	Unene wa insulation	Unene wa nje wa shehe	Takriban. Kwa jumla Kipenyo	Shaba	Aluminium	Urefu wa kawaida kwa Ngoma
mm²	mm	mm	mm	kilo/km		m
10	2.5	1.9	33	980	790	500
16	2.5	2.0	35	1,190	890	500
25	2.5	2.1	38	1,560	1,080	500
35	2.5	2.2	40	1,930	1,270	500
50	2.5	2.3	43	2,370	1,480	500
70	2.5	2.4	47	3,110	1,820	500
95	2.5	2.5	51	4,000	2,200	500
120	2.5	2.6	54	4,820	2,550	500
150	2.5	2.7	58	5,770	2,970	500
185	2.5	2.8	61	6,960	3,460	500
240	2.6	3.0	68	8,940	4,340	400
300	2.8	3.2	73	10,980	5,190	300
400	3.0	3.5	81	13,820	6,440	250
500	3.2	3.7	90	17,390	7,910	200

3.6/6 (7.2) KV, XLPE iliyowekwa waya iliyotiwa waya iliyotiwa nguvu ya PVC

Core-Core, Cu/XLPE/AWA/PVC Oral/XLPE/AWA/PVC (Jedwali 21)

Conductor Nominal Eneo	Unene wa insulation	Approx.inner kifuniko Unene	Saizi ya waya ya silaha	Nje Sheath Unene	Takriban. Kipenyo cha jumla	Takriban. Uzito wa cable		Kiwango Urefu kwa Ngoma
Conductor Nominal Eneo	Unene wa insulation	Approx.inner kifuniko Unene	Saizi ya waya ya silaha	Nje Sheath Unene	Takriban. Kipenyo cha jumla	Shaba	Aluminium	Kiwango Urefu kwa Ngoma
mm²	mm	mm	mm	mm	mm	kilo/km		m
10	2.5	1.2	0.9	1.8	22	610	550	500
16	2.5	1.2	1.6	1.8	24	680	580	500
25	2.5	1.2	1.6	1.8	25	810	660	500
35	2.5	1.2	1.6	1.8	26	940	730	500
50	2.5	1.2	1.6	1.8	27	1,100	810	500
70	2.5	1.2	1.6	1.8	29	1,350	930	500
95	2.5	1.2	1.6	1.9	31	1,670	1,080	500
120	2.5	1.2	1.6	1.9	32	1,950	1,200	500
150	2.5	1.2	1.6	2.0	34	2,270	1,350	500
185	2.5	1.2	2.0	2.1	37	2,770	1,620	500
240	2.6	1.2	2.0	2.2	40	3,440	1,930	500
300	2.8	1.2	2.0	2.2	42	4,120	2,210	500
400	3.0	1.3	2.5	2.4	47	5,250	2,820	500
500	3.2	1.3	2.5	2.5	51	6,450	3,340	500
630	3.2	1.4	2.5	2.6	55	7,990	3,950	400

Tatu-msingi, cu/xlpe/swa/pvc au al/xlpe/swa/pvc (Jedwali 22)

Conductor Nominal Eneo	Unene wa insulation	Takriban. Kifuniko cha ndani Unene	Saizi ya waya ya silaha	Nje Sheath Unene	Takriban. Kipenyo cha jumla	Takriban. Uzito wa cable		Kiwango Urefu kwa Ngoma
Conductor Nominal Eneo	Unene wa insulation	Takriban. Kifuniko cha ndani Unene	Saizi ya waya ya silaha	Nje Sheath Unene	Takriban. Kipenyo cha jumla	Shaba	Aluminium	Kiwango Urefu kwa Ngoma
mm²	mm	mm	mm	mm	mm	kilo/km		m
10	2.5	1.2	2.0	2.1	40	2,310	2,120	500
16	2.5	1.2	2.0	2.2	42	2,600	2,290	500
25	2.5	1.2	2.0	2.3	45	3,080	2,600	500
35	2.5	1.3	2.5	2.4	48	3,950	3,280	500
50	2.5	1.3	2.5	2.5	54	4,530	3,630	500
70	2.5	1.4	2.5	2.6	55	5,510	4,210	500
95	2.5	1.5	2.5	2.8	59	6,660	4,860	500
120	2.5	1.5	2.5	2.9	63	7,630	5,360	400
150	2.5	1.6	2.5	3.0	66	8,800	6,000	400
185	2.5	1.7	3.15	3.2	72	11,500	6,670	300
240	2.6	1.8	3.15	3.4	78	13,480	8,870	250
300	2.8	1.9	3.15	3.6	84	15,920	10,130	200
400	3.0	2.0	4.0	3.9	94	21,300	12,590	200
500	3.2	2.1	4.0	4.1	103	25,090	15,610	200

3.6/6 (7.2) KV, XLPE iliyoingizwa mkanda wa kivinjari cha PVC iliyotiwa nguvu

Core-Core, Cu/XLPE/ATA/PVCOR AL/XLPE/ATA/PVC (Jedwali 23)

Conductor Nominal Eneo	Unene wa insulation	Takriban. Kifuniko cha ndani Unene	Silaha Waya Saizi	Nje Sheath Unene	Takriban. Kipenyo cha jumla	Takriban. Uzito wa cable		Kiwango Urefu kwa Ngoma
Conductor Nominal Eneo	Unene wa insulation	Takriban. Kifuniko cha ndani Unene	Silaha Waya Saizi	Nje Sheath Unene	Takriban. Kipenyo cha jumla	Shaba	Aluminium	Kiwango Urefu kwa Ngoma
mm²	mm	mm	mm	mm	mm	kilo/km		m
10	2.5	1.2	0.5	1.8	22	530	460	500
16	2.5	1.2	0.5	1.8	23	600	500	500
25	2.5	1.2	0.5	1.8	24	730	570	500
35	2.5	1.2	0.5	1.8	25	850	630	500
50	2.5	1.2	0.5	1.8	26	1,000	700	500
70	2.5	1.2	0.5	1.8	28	1,240	820	500
95	2.5	1.2	0.5	1.8	30	1,540	950	500
120	2.5	1.2	0.5	1.8	31	1,820	1,080	500
150	2.5	1.2	0.5	1.9	33	2,120	1,200	500
185	2.5	1.2	0.5	1.9	35	2,520	1,370	500
240	2.6	1.2	0.5	2.0	37	3,180	1,670	500
300	2.8	1.2	0.5	2.1	40	3,850	1,950	500
400	3.0	1.3	0.5	2.3	44	4,800	2,370	500
500	3.2	1.3	0.5	2.4	48	5,960	2,840	500
630	3.2	1.4	0.5	2.5	52	7,450	3,410	600

Tatu-msingi, cu/xlpe/sta/pvcor al/xlpe/sta/pvc (Jedwali 24)

Conductor Nominal Eneo	Unene wa insulation	Approx.inner kifuniko Unene	Saizi ya waya ya silaha	Nje Sheath Unene	Takriban. Kipenyo cha jumla	Takriban. Uzito wa cable		Kiwango Urefu kwa Ngoma
Conductor Nominal Eneo	Unene wa insulation	Approx.inner kifuniko Unene	Saizi ya waya ya silaha	Nje Sheath Unene	Takriban. Kipenyo cha jumla	Shaba	Aluminium	Kiwango Urefu kwa Ngoma
mm²	mm	mm	mm	mm	mm	kilo/km		m
10	2.5	1.2	0.2	2.0	37	1,330	1,140	500
16	2.5	1.2	0.5	2.1	40	1,580	1,580	500
25	2.5	1.2	0.5	2.2	42	2,310	1,880	500
35	2.5	1.3	0.5	2.3	45	2,760	2,090	500
50	2.5	1.3	0.5	2.4	48	3,260	2,360	500
70	2.5	1.4	0.5	2.5	52	4,100	2,810	500
95	2.5	1.5	0.5	2.7	56	5,110	3,310	500
120	2.5	1.5	0.5	2.8	60	5,010	3,750	400
150	2.5	1.6	0.5	2.9	63	7,050	4,250	400
185	2.5	1.7	0.5	3.0	67	9,320	4,820	400
240	2.6	1.8	0.5	3.2	73	10,530	5,920	300
300	2.8	1.9	0.5	3.4	79	12,730	6,940	300
400	3.0	2.0	0.8	3.7	89	16,620	9,240	200
500	3.2	2.1	0.8	4.0	98	20,550	11,070	200

6 ~ 30KV XLPE CABLES Nguvu za Nguvu

Bidhaa hii hutumia laini ya uzalishaji wa safu ya Ufini ya Nextrom (Nokia) safu tatu za utengenezaji wa viwandani vya kuunganisha kemikali.
Inafaa kwa kuwekewa kwa kudumu kwa mstari wa kati wa voltage.
Utendaji wa nyaya unakubaliana na maelezo ya IEC 60502.

Uainishaji wa bidhaa

Mfano		Jina
Cu/XLPE/PVC	Al/XLPE/PVC	Conductor ya shaba au aluminium XLPE iliyowekwa na PVC iliyotiwa nguvu ya kebo
Cu/xlpe/pe	Al/xlpe/pe	Conductor ya shaba au aluminium XLPE iliyowekwa na cable ya nguvu ya PE
Cu/XLPE/STA/PVC	Al/xlpe/sta/pvc	Shaba au alumini conductor xlpe maboksi ya chuma mkanda silaha pvc sheathed nguvu cable cable
Cu/xlpe/sta/pe	Al/xlpe/sta/pe	Shaba au alumini conductor xlpe maboksi ya chuma mkanda silaha pe sheathed nguvu cable cable
Cu/xlpe/swa/pvc	Al/xlpe/swa/pvc	Shaba au alumini conductor xlpe maboksi waya waya wa chuma
Cu/xlpe/swa/pe	Al/xlpe/swa/pe	Conductor au alumini conductor xlpe maboksi waya waya wa chuma rmored pe sheathed nguvu cable
Cu/xlpe/cwl/pe	Al/xlpe/cwl/pe	Conductor au alumini conductor XLPE iliyowekwa ndani ya nguvu ya safu ya kuzuia maji ya maji

Anuwai ya matumizi

Mfano		Anuwai ya matumizi
Cu/XLPE/PVC	Al/XLPE/PVC	Inafaa kwa kuwekewa ndani na nje, lazima iwekwe kwenye bracket kwenye handaki, na inaweza kuvikwa kupitia bomba la saruji au kuwekwa kwenye shimoni la cable na kuzikwa moja kwa moja kwenye mchanga huru. Cable haiwezi kuhimili shinikizo, lakini inaruhusu kiwango fulani cha traction ya mionzi.
Cu/xlpe/pe	Al/xlpe/pe
Cu/XLPE/STA/PVC	Al/xlpe/sta/pvc	Kuzikwa katika ardhi, cable inaweza kuhimili shinikizo fulani, lakini haiwezi kuhimili nguvu kubwa tensile.
Cu/xlpe/sta/pe	Al/xlpe/sta/pe
Cu/xlpe/swa/pvc	Al/xlpe/swa/pvc
Cu/xlpe/swa/pe	Al/xlpe/swa/pe
Cu/xlpe/cwl/pe	Al/xlpe/cwl/pe	Inatumika kwa mahitaji ya kupinga maji ya safu ya nje ya nyaya

Nishati ya Mashariki

Uhandisi wa umeme

6/6kv, 6/10 (12) KV, XLPE iliyowekwa ndani ya nguvu ya PVC iliyowekwa wazi, Cu/XLPE/PVC au Al/XLPE/PVC (Jedwali 25)

Conductor Nominal Eneo	Unene wa insulation	Unene wa nje wa shehe	Takriban. Kwa jumla Kipenyo	Takriban. Uzito wa cable		Kiwango Urefu kwa Ngoma
Conductor Nominal Eneo	Unene wa insulation	Unene wa nje wa shehe	Takriban. Kwa jumla Kipenyo	Shaba	Aluminium	Kiwango Urefu kwa Ngoma
mm²	mm	mm	mm	kilo/km		m
16	3.4	1.8	20	450	350	500
25	3.4	1.8	21	560	400	500
35	3.4	1.8	22	680	460	500
50	3.4	1.8	24	810	520	500
70	3.4	1.8	25	1,050	620	500
95	3.4	1.8	27	1,320	730	500
120	3.4	1.8	28	1,580	840	500
150	3.4	1.9	30	1,880	960	500
185	3.4	1.9	32	2,250	1,100	500
240	3.4	2.0	34	2,870	1,350	500
300	3.4	2.1	37	3,490	1,580	500
400	3.4	2.2	40	4,350	1,920	500
500	3.4	2.3	44	5,440	2,320	500
630	3.4	2.4	48	6,860	2,830	500
800	3.4	2.5	52	8,600	3,430	400
1.000	3.4	2.6	56	10,630	4,150	300

Tatu-msingi, Cu/XLPE/PVC au Al/XLPE/PVC (Jedwali 26)

Conductor Nominal Eneo	Unene wa insulation	Unene wa nje wa shehe	Takriban. Kwa jumla Kipenyo	Approx.cable uzito		Urefu wa kawaida kwa Ngoma
Conductor Nominal Eneo	Unene wa insulation	Unene wa nje wa shehe	Takriban. Kwa jumla Kipenyo	Shaba	Aluminium	Urefu wa kawaida kwa Ngoma
mm²	mm	mm	mm	kilo/km		m
16	3.4	2.1	39	1,410	1,110	500
25	3.4	2.2	42	1,800	1,320	500
35	3.4	2.3	45	2,170	1,500	500
50	3.4	2.4	47	2,630	1,730	500
70	3.4	2.5	51	3,400	2,110	500
95	3.4	2.6	55	4,310	2,510	500
120	3.4	2.7	58	5,150	2,860	500
150	3.4	2.9	62	6,100	3,300	500
185	3.4	3.0	66	7,310	3,810	500
240	3.4	3.1	71	9,290	4,680	400
300	3.4	3.3	76	11,240	5,450	300
400	3.4	3.5	83	14,040	6,660	250
500	3.4	3.7	91	17,530	8,050	200

6/6kv, 6/10 (12) KV, XLPE iliyowekwa waya iliyotiwa waya iliyotiwa nguvu ya PVC

Core-Core, Cu/XLPE/AWA/PVC au Al/XLPE/AWA/PVC (Jedwali 27)

Conductor Nominal Eneo	Unene wa insulation	Approx.inner kifuniko Unene	Saizi ya waya ya silaha	Nje Sheath Unene	Takriban. Kipenyo cha jumla	Takriban. Uzito wa cable		Kiwango Urefu kwa Ngoma
Conductor Nominal Eneo	Unene wa insulation	Approx.inner kifuniko Unene	Saizi ya waya ya silaha	Nje Sheath Unene	Takriban. Kipenyo cha jumla	Shaba	Aluminium	Kiwango Urefu kwa Ngoma
mm²	mm	mm	mm	mm	mm	kilo/km		m
16	3.4	1.2	1.6	1.8	26	770	670	500
25	3.4	1.2	1.6	1.8	27	910	750	500
35	3.4	1.2	1.6	1.8	28	1,040	820	500
50	3.4	1.2	1.6	1.8	29	1,190	900	500
70	3.4	1.2	1.6	1.9	31	1,470	1,040	500
95	3.4	1.2	1.6	2.0	33	1,780	1,190	500
120	3.4	1.2	2.0	2.0	35	2,150	1,410	500
150	3.4	1.2	2.0	2.1	37	2,480	1,560	500
185	3.4	1.2	2.0	2.1	39	2,890	1,730	500
240	3.4	1.2	2.0	2.2	41	3,570	2,050	500
300	3.4	1.2	2.0	2.3	44	4,230	2,330	500
400	3.4	1.3	2.5	2.4	48	5,320	2,890	500
500	3.4	1.3	2.5	2.5	52	6,500	3,380	500
630	3.4	1.4	2.5	2.6	56	8,020	3,990	400

Tatu-msingi, cu/xlpe/swa/pvc au al/xlpe/swa/pvc (Jedwali 28)

Conductor Nominal Eneo	Unene wa insulation	Takriban. Kifuniko cha ndani Unene	Saizi ya waya ya silaha	Nje Sheath Unene	Takriban. Kipenyo cha jumla	Takriban. Uzito wa cable		Kiwango Urefu kwa Ngoma
Conductor Nominal Eneo	Unene wa insulation	Takriban. Kifuniko cha ndani Unene	Saizi ya waya ya silaha	Nje Sheath Unene	Takriban. Kipenyo cha jumla	Shaba	Aluminium	Kiwango Urefu kwa Ngoma
mm²	mm	mm	mm	mm	mm	kilo/km		m
16	3.4	1.3	2.5	2.4	47	3,700	2,700	500
25	3.4	1.3	2.5	2.5	50	3,900	3,430	500
35	3.4	1.3	2.5	2.6	53	4,430	3,770	500
50	3.4	1.4	2.5	2.7	56	5,080	4,190	500
70	3.4	1.5	2.5	2.8	60	6,050	4,750	500
95	3.4	1.5	2.5	2.9	64	7,180	5,380	500
120	3.4	1.6	2.5	3.0	67	8,230	5,960	400
150	3.4	1.7	3.15	3.2	72	10,100	6,580	300
185	3.4	1.7	3.15	3.3	76	11,610	8,110	300
240	3.4	1.8	3.15	3.5	82	14,110	9,510	250
300	3.4	1.9	3.15	3.7	87	16,420	10,630	200
400	3.4	2.0	4.0	4.0	96	21,700	12,880	200
500	3.4	2.2	4.0	4.2	104	25,280	15,800	200

6/6kv, 6/10 (12) KV, XLPE Mkanda wa maboksi uliowekwa waya wa nguvu wa PVC

Core-Core, Cu/XLPE/ATA/PVC au Al/XLPE/ATA/PVC (Jedwali 29)

Conductor Nominal Eneo	Unene wa insulation	Approx.inner kifuniko Unene	Saizi ya waya ya silaha	Nje Sheath Unene	Takriban. Kipenyo cha jumla	Takriban. Uzito wa cable		Urefu wa kawaida kwa Ngoma
Conductor Nominal Eneo	Unene wa insulation	Approx.inner kifuniko Unene	Saizi ya waya ya silaha	Nje Sheath Unene	Takriban. Kipenyo cha jumla	Shaba	Aluminium	Urefu wa kawaida kwa Ngoma
mm²	mm	mm	mm	mm	mm	kilo/km		m
16	3.4	1.2	0.5	1.8	25	680	580	500
25	3.4	1.2	0.5	1.8	26	810	650	500
35	3.4	1.2	0.5	1.8	27	940	720	500
50	3.4	1.2	0.5	1.8	28	1,090	790	500
70	3.4	1.2	0.5	1.9	30	1,350	920	500
95	3.4	1.2	0.5	1.9	32	1,650	1,060	500
120	3.4	1.2	0.5	2.0	33	1,940	1,190	500
150	3.4	1.2	0.5	2.0	35	2,240	1,320	500
185	3.4	1.2	0.5	2.1	37	2,650	1,500	500
240	3.4	1.2	0.5	2.1	39	3,290	1,770	500
300	3.4	1.2	0.5	2.2	41	3,940	2,030	500
400	3.4	1.3	0.5	2.3	45	4,860	2,430	500
500	3.4	1.3	0.5	2.4	49	5,990	2,880	500
630	3.4	1.4	0.5	2.5	52	7,480	3,450	500

Tatu-msingi, cu/xlpe/sta/pvc au al/xlpe/sta/pvc (Jedwali 30)

Conductor Nominal Eneo	Unene wa insulation	Approx.inner kifuniko Unene	Saizi ya waya ya silaha	Nje Sheath Unene	Takriban. Kipenyo cha jumla	Takriban. Uzito wa cable		Urefu wa kawaida kwa Ngoma
Conductor Nominal Eneo	Unene wa insulation	Approx.inner kifuniko Unene	Saizi ya waya ya silaha	Nje Sheath Unene	Takriban. Kipenyo cha jumla	Shaba	Aluminium	Urefu wa kawaida kwa Ngoma
mm²	mm	mm	mm	mm	mm	kilo/km		m
16	3.4	1.3	0.2	2.3	44	2,220	1,900	500
25	3.4	1.3	0.5	2.4	47	2,660	2,180	500
35	3.4	1.3	0.5	2.5	50	3,110	2,440	500
50	3.4	1.4	0.5	2.6	53	3,650	2,750	500
70	3.4	1.5	0.5	2.7	56	4,510	3,220	500
95	3.4	1.5	0.5	2.8	60	5,510	3,710	500
120	3.4	1.6	0.5	2.9	64	6,450	4,180	500
150	3.4	1.7	0.5	3.1	68	7,500	4,700	400
185	3.4	1.7	0.5	3.2	71	8,830	5,330	400
240	3.4	1.8	0.5	3.3	77	10,960	6,360	300
300	3.4	1.9	0.5	3.5	82	13,090	7,300	250
400	3.4	2.0	0.8	3.8	91	16,910	9,530	200
500	3.4	2.2	0.8	4.0	99	20,720	11,250	200

8.7/10kv, 8.7/15 (17.5) KV, XLPE iliyowekwa ndani ya nguvu ya PVC iliyotiwa nguvu

Core-Core, Cu/XLPE/PVC au Al/XLPE/PVC (Jedwali 31)

Conductor Nominal Eneo	Unene wa insulation	Unene wa nje wa shehe	Takriban. Kwa jumla Kipenyo	Takriban. Uzito wa cable		Kiwango Urefu kwa Ngoma
Conductor Nominal Eneo	Unene wa insulation	Unene wa nje wa shehe	Takriban. Kwa jumla Kipenyo	Shaba	Aluminium	Kiwango Urefu kwa Ngoma
mm²	mm	mm	mm	kilo/km		m
25	4.5	1.8	24	640	480	500
35	4.5	1.8	25	760	540	500
50	4.5	1.8	26	900	610	500
70	4.5	1.8	28	1,140	710	500
95	4.5	1.8	29	1,420	830	500
120	4.5	1.9	31	1,700	950	500
150	4.5	1.9	32	1,990	1,070	500
185	4.5	2.0	34	2,380	1,230	500
240	4.5	2.1	37	3,010	1,490	500
300	4.5	2.1	39	3,620	1,720	500
400	4.5	2.2	42	4,490	2,070	500
500	4.5	2.3	46	5,600	2,480	500
630	4.5	2.5	50	7,050	3,010	500
800	4.5	2.6	54	8,800	3,630	400
1,000	4.5	2.7	58	10,850	4,370	300

Tatu-msingi, Cu/XLPE/PVC au Al/XLPE/PVC (Jedwali 32)

Conductor Nominal Eneo	Unene wa insulation	Unene wa nje wa shehe	Takriban. Kwa jumla Kipenyo	Takriban. Uzito wa cable		Kiwango Urefu kwa Ngoma
Conductor Nominal Eneo	Unene wa insulation	Unene wa nje wa shehe	Takriban. Kwa jumla Kipenyo	Shaba	Aluminium	Kiwango Urefu kwa Ngoma
mm²	mm	mm	mm	kilo/km		m
25	4.5	2.4	47	2,100	1,620	500
35	4.5	2.5	50	2,510	1,840	500
50	4.5	2.6	52	2,980	2,080	500
70	4.5	2.7	56	3,760	2,470	500
95	4.5	2.8	60	4,700	2,900	500
120	4.5	2.9	63	5,590	3,320	500
150	4.5	3.0	67	6,560	3,760	500
185	4.5	3.1	71	7,800	4,300	400
240	4.5	3.3	76	9,820	5,220	300
300	4.5	3.5	81	11,800	6,010	300
400	4.5	3.7	88	14,620	7,250	250
500	4.5	3.9	96	18,150	8,680	200

8 .7/10kv, 8.7/15 (17.5) KV, XLPE iliyowekwa waya iliyotiwa waya ya nguvu ya PVC

Core-Core, Cu/XLPE/AWA/PVC Oral/XLPE/AWA/PVC (Jedwali 33)

Conductor Nominal Eneo	Unene wa insulation	Takriban. Kifuniko cha ndani Unene	Saizi ya waya ya silaha	Nje Sheath Unene	Takriban. Kipenyo cha jumla	Takriban. Uzito wa cable		Kiwango Urefu kwa Ngoma
Conductor Nominal Eneo	Unene wa insulation	Takriban. Kifuniko cha ndani Unene	Saizi ya waya ya silaha	Nje Sheath Unene	Takriban. Kipenyo cha jumla	Shaba	Aluminium	Kiwango Urefu kwa Ngoma
mm²	mm	mm	mm	mm	mm	kilo/km		m
25	4.5	1.2	1.6	1.8	29	1,020	860	500
35	4.5	1.2	1.6	1.9	30	1,170	950	500
50	4.5	1.2	1.6	1.9	32	1,340	1,040	500
70	4.5	1.2	1.6	2.0	34	1,640	1,190	500
95	4.5	1.2	2.0	2.1	36	2,020	1,430	500
120	4.5	1.2	2.0	2.1	38	2,310	1,570	500
150	4.5	1.2	2.0	2.2	39	2,660	1,740	500
185	4.5	1.2	2.0	2.2	41	3,070	1,920	500
240	4.5	1.2	2.0	2.3	44	3,750	2,240	500
300	4.5	1.3	2.5	2.4	47	4,590	2,690	500
400	4.5	1.3	2.5	2.5	50	5,550	3,120	500
500	4.5	1.4	2.5	2.6	51	6,750	3,640	500
630	4.5	1.4	2.5	2.7	58	8,280	4,240	400

Tatu-msingi, cu/xlpe/swa/pvc au al/xlpe/swa/pvc (Jedwali 34)

Conductor Nominal Eneo	Unene wa insulation	Approx.inner kifuniko Unene	Silaha Waya Saizi	Nje Sheath Unene	Takriban. Kipenyo cha jumla	Takriban. Uzito wa cable		Urefu wa kawaida kwa Ngoma
Conductor Nominal Eneo	Unene wa insulation	Approx.inner kifuniko Unene	Silaha Waya Saizi	Nje Sheath Unene	Takriban. Kipenyo cha jumla	Shaba	Aluminium	Urefu wa kawaida kwa Ngoma
mm²	mm	mm	mm	mm	mm	kilo/km		m
25	4.5	1.4	2.5	2.7	55	4,560	4,080	500
35	4.5	1.4	2.5	2.8	58	5,080	4,410	500
50	4.5	1.5	2.5	2.9	61	5,740	4,840	500
70	4.5	1.6	2.5	3.0	65	6,770	5,480	500
95	4.5	1.6	2.5	3.1	69	7,890	6,100	400
120	4.5	1.7	3.15	3.2	74	10,900	6,700	400
150	4.5	1.8	3.15	3.4	77	11,030	8,220	300
185	4.5	1.8	3.15	3.5	81	12,490	8,980	250
240	4.5	1.9	4.0	3.7	89	17,500	10,440	250
300	4.5	2.0	4.0	3.9	94	20,100	12,130	200
400	4.5	2.1	4.0	4.1	101	23,600	13,970	200

8.7/10kv, 8.7/15 (17.5) KV, XLPE iliyo na maboksi ya bomba la nguvu ya PVC iliyotiwa nguvu

Core-Core, Cu/XLPE/ATA/PVC au Al/XLPE/ATA/PVC (Jedwali 35)

Conductor Nominal Eneo	Unene wa insulation	Approx.inner kifuniko Unene	Saizi ya waya ya silaha	Nje Sheath Unene	Takriban kipenyo cha jumla	Takriban. Uzito wa cable		Kiwango Urefu kwa Ngoma
Conductor Nominal Eneo	Unene wa insulation	Approx.inner kifuniko Unene	Saizi ya waya ya silaha	Nje Sheath Unene	Takriban kipenyo cha jumla	Shaba	Aluminium	Kiwango Urefu kwa Ngoma
mm²	mm	mm	mm	mm	mm	kilo/km		m
25	4.5	1.2	0.5	1.8	28	910	760	500
35	4.5	1.2	0.5	1.8	29	1,050	830	500
50	4.5	1.2	0.5	1.9	30	1,210	920	500
70	4.5	1.2	0.5	1.9	32	1,470	1,050	500
95	4.5	1.2	0.5	2.0	34	1,790	1,200	500
120	4.5	1.2	0.5	2.0	35	2,070	1,320	500
150	4.5	1.2	0.5	2.1	37	2,400	1,470	500
185	4.5	1.2	0.5	2.1	39	2,800	1,640	500
240	4.5	1.2	0.5	2.2	41	3,460	1,940	500
300	4.5	1.3	0.5	2.3	44	4,160	2,230	500
400	4.5	1.3	0.5	2.4	47	5,050	2,620	500
500	4.5	1.4	0.5	2.5	51	6,220	3,100	500
630	4.5	1.4	0.5	2.6	55	7,710	3,670	500

Tatu-msingi, cu/xlpe/sta/pvc au al/xlpe/sta/pvc (Jedwali 36)

Conductor Nominal Eneo	Unene wa insulation	Takriban. Kifuniko cha ndani Unene	Saizi ya waya ya silaha	Nje Sheath Unene	Takriban. Kipenyo cha jumla	Takriban. Uzito wa cable		Kiwango Urefu kwa Ngoma
Conductor Nominal Eneo	Unene wa insulation	Takriban. Kifuniko cha ndani Unene	Saizi ya waya ya silaha	Nje Sheath Unene	Takriban. Kipenyo cha jumla	Shaba	Aluminium	Kiwango Urefu kwa Ngoma
mm²	mm	mm	mm	mm	mm	kilo/km		m
25	4.5	1.4	0.5	2.6	52	3,120	2,640	500
35	4.5	1.4	0.5	2.6	55	3,570	2,900	500
50	4.5	1.5	0.5	2.7	58	4,120	3,220	500
70	4.5	1.6	0.5	2.9	62	5,050	3,750	500
95	4.5	1.6	0.5	3.0	66	6,070	4,270	500
120	4.5	1.7	0.5	3.1	69	7,040	4,770	500
150	4.5	1.8	0.5	3.2	73	8,120	5,310	400
185	4.5	1.8	0.5	3.3	77	9,440	5,940	300
240	4.5	1.9	0.5	3.5	83	11,660	7,050	300
300	4.5	2.0	0.8	3.7	89	14,600	8,810	250
400	4.5	2.1	0.8	4.0	96	17,760	10,370	200
500	4.5	2.3	0.8	4.2	105	21,620	12,150	200

12/20 (24) KV, XLPE iliyowekwa ndani ya nguvu ya PVC iliyotiwa nguvu

Core-Core, Cu/XLPE/PVC au Al/XLPE/PVC (Jedwali 37)

Conductor Nominal Eneo	Unene wa insulation	Unene wa nje wa shehe	Takriban. Kwa jumla Kipenyo	Takriban. Uzito wa cable		Kiwango Urefu kwa Ngoma
Conductor Nominal Eneo	Unene wa insulation	Unene wa nje wa shehe	Takriban. Kwa jumla Kipenyo	Shaba	Aluminium	Kiwango Urefu kwa Ngoma
mm²	mm	mm	mm	kilo/km		m
35	5.5	1.8	27	840	620	500
50	5.5	1.8	28	990	690	500
70	5.5	1.9	30	1,230	800	500
95	5.5	1.9	31	1,530	940	500
120	5.5	2.0	33	1,810	1,060	500
150	5.5	2.0	35	2,110	1,190	500
185	5.5	2.1	36	2,510	1,360	500
240	5.5	2.1	39	3,130	1,610	500
300	5.5	2.2	41	3,760	1,860	500
400	5.5	2.3	44	4,650	2,220	500
500	5.5	2.4	48	5,760	2,650	500
630	5.5	2.5	52	7,210	3,180	500
800	5.5	2.6	56	8,980	3,800	400
1,000	5.5	2.8	61	11,060	4,580	300

Tatu-msingi, Cu/XLPE/PVC au Al/XLPE/PVC

(Jedwali 38)

Conductor Nominal Eneo	Unene wa insulation	Unene wa nje wa shehe	Takriban. Kwa jumla Kipenyo	Takriban. Uzito wa cable		Urefu wa kawaida kwa Ngoma
Conductor Nominal Eneo	Unene wa insulation	Unene wa nje wa shehe	Takriban. Kwa jumla Kipenyo	Shaba	Aluminium	Urefu wa kawaida kwa Ngoma
mm²	mm	mm	mm	kilo/km		m
35	5.5	2.6	54	2,850	2,080	500
50	5.5	2.7	57	3,340	2,450	500
70	5.5	2.9	61	4,150	2,850	500
95	5.5	3.0	65	5,110	3,310	500
120	5.5	3.1	68	5,990	3,730	500
150	5.5	3.2	72	6,980	4.180	500
185	5.5	3.3	75	8,240	4,740	400
240	5.5	3.5	81	10,310	5,700	300
300	5.5	3.6	86	12,350	6,570	300
400	5.5	3.8	93	15,220	7,830	200
500	5.5	4.1	101	18,800	9,320	200

12/20 (24) KV, XLPE iliyowekwa waya iliyotiwa waya iliyotiwa nguvu ya PVC

Core-Core, Cu/XLPE/AWA/PVC Oral/XLPE/AWA/PVC (Jedwali 39)

Conductor Nominal Eneo	Unene wa insulation	Approx.inner kifuniko Unene	Saizi ya waya ya silaha	Nje Sheath Unene	Takriban. Kipenyo cha jumla	Takriban. Uzito wa cable		Kiwango Urefu kwa Ngoma
Conductor Nominal Eneo	Unene wa insulation	Approx.inner kifuniko Unene	Saizi ya waya ya silaha	Nje Sheath Unene	Takriban. Kipenyo cha jumla	Shaba	Aluminium	Kiwango Urefu kwa Ngoma
mm²	mm	mm	mm	mm	mm	kilo/km		m
35	5.5	1.2	1.6	1.9	32	1,290	1,070	500
50	5.5	1.2	2.0	2.0	35	1,550	1,250	500
70	5.5	1.2	2.0	2.1	37	1,840	1,420	500
95	5.5	1.2	2.0	2.1	38	2,160	1,570	500
120	5.5	1.2	2.0	2.2	40	2,470	1,730	500
150	5.5	1.2	2.0	2.2	41	2,810	1,890	500
185	5.5	1.2	2.0	2.3	43	3,240	2,090	500
240	5.5	1.3	2.5	2.4	47	4,100	2,580	500
300	5.5	1.3	2.5	2.5	49	4,800	2,890	500
400	5.5	1.4	2.5	2.6	53	5,780	3,350	500
500	5.5	1.4	2.5	2.7	57	6,970	3,850	500
630	5.5	1.5	2.5	2.8	60	8,540	4,500	400

Tatu-msingi, cu/xlpe/swa/pvcoral/xlpe/swa/pvc (Jedwali 40)

Conductor Nominal Eneo	Unene wa insulation	Approx.inner kifuniko Unene	Saizi ya waya ya silaha	Nje Sheath Unene	Takriban. Kipenyo cha jumla	Takriban. Uzito wa cable		Kiwango Urefu kwa Ngoma
Conductor Nominal Eneo	Unene wa insulation	Approx.inner kifuniko Unene	Saizi ya waya ya silaha	Nje Sheath Unene	Takriban. Kipenyo cha jumla	Shaba	Aluminium	Kiwango Urefu kwa Ngoma
mm²	mm	mm	mm	mm	mm	kilo/km		m
35	5.5	1.5	2.5	2.9	63	5,680	5,010	500
50	5.5	1.6	2.5	3.0	66	6,370	5,480	500
70	5.5	1.7	2.5	3.1	70	7,370	6,070	400
95	5.5	1.7	3.15	3.3	75	9,400	7,600	300
120	5.5	1.8	3.15	3.4	79	10,530	8,270	300
150	5.5	1.8	3.15	3.5	82	11,740	8,940	300
185	5.5	1.9	3.15	3.7	86	13,350	9,850	250
240	5.5	2.0	4.0	3.9	94	18,000	11,820	200
300	5.5	2.1	4.0	4.0	99	20,500	13,080	200
400	5.5	2.2	4.0	4.3	106	23,310	15,930	200

Kabla:

Ifuatayo:

*Thibitisha Kanuni

Triple Core XLPE Cable ya Nguvu iliyowekwa na waya wa chuma kwa matumizi ya kati ya voltage

Kuhusu sisi

BIDHAA

WASILIANA NASI
