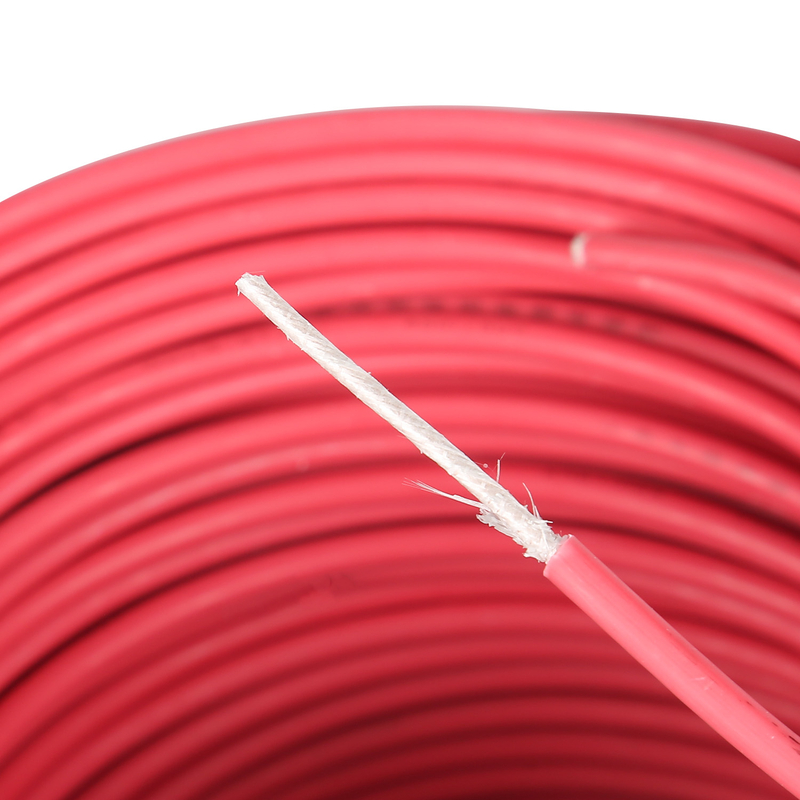

Nambari: THW
Kiwango: UL83
Ujenzi: 1-solid au conductor ya shaba iliyokatwa
2-PVC insulation
Maombi: Kwa usanikishaji uliolindwa katika vifaa na taa zinazofaa pia kwa usanikishaji katika mfereji na chini ya plaster
Takwimu za kiufundi: Max.Uendeshaji wa joto 75 ℃
Sehemu ya msalaba ya nominella | Conductor | Unene wa insulation | Kipenyo cha jumla | Takriban jumla ya uzito | Conductor DC Upinzani saa 20 ℃ | |
mm² | Ujenzi | mm | mm | kilo/km | Ω/km | |
14 AWG | 1 | 1.63 | 0.76 | 3.21 | 3.97 | 8.45 |
12 AWG | 1 | 2.05 | 0.76 | 3.63 | 4.39 | 5.31 |
10 AWG | 1 | 2.588 | 0.76 | 4.17 | 4.93 | 3.34 |
8 AWG | 1 | 3.264 | 1.14 | 5.6 | 6.74 | 2.1 |
6 AWG | 1 | 4.115 | 1.52 | 7.22 | 8.74 | 1.32 |
14 AWG | 7 | 0.617 | 0.76 | 3.43 | 4.19 | 8.62 |
12 AWG | 7 | 0.773 | 0.76 | 3.9 | 4.66 | 5.43 |
10 AWG | 7 | 0.983 | 0.76 | 4.53 | 5.29 | 3.41 |
8 AWG | 7 | 1.237 | 1.14 | 6.05 | 7.19 | 2.14 |
6awg | 7 | 1.537 | 1.52 | 7.71 | 9.23 | 1.35 |
4 AWG | 7 | 1.963 | 1.52 | 8.99 | 10.51 | 0.848 |
2 AWG | 7 | 2.473 | 1.52 | 10.52 | 12.04 | 0.534 |
1 AWG | 19 | 1.686 | 2.03 | 12.55 | 14.58 | 0.423 |
1/0 AWG | 19 | 1.89 | 2.03 | 13.57 | 15.6 | 0.335 |
2/0 AWG | 19 | 2.124 | 2.03 | 14.74 | 16.77 | 0.266 |
3/0 AWG | 19 | 2.388 | 2.03 | 16.06 | 18.09 | 0.211 |
4/0 AWG | 37 | 1.916 | 2.03 | 17.53 | 19.56 | 0.167 |
250 kcmil | 37 | 2.085 | 2.41 | 19.48 | 21.89 | 0.142 |
300 Kemil | 37 | 2.286 | 2.41 | 20.88 | 23.29 | 0.118 |
350 kcmil | 37 | 2.471 | 2.41 | 22.18 | 24.59 | 0.101 |
400 kcmil | 37 | 2.641 | 2.41 | 23.37 | 25.78 | 0.0885 |
500 kcmil | 61 | 2.294 | 2.41 | 25.53 | 27.94 | 0.0709 |
600 kcmil | 61 | 2.52 | 2.79 | 28.32 | 31.11 | 0.059 |
700 Kemil | 61 | 2.721 | 2.79 | 30.13 | 32.92 | 0.0506 |
750 Kemil | 61 | 2.817 | 2.79 | 30.99 | 33.78 | 0.0472 |
800 Kemil | 61 | 2.907 | 2.79 | 31.8 | 34.59 | 0.0443 |
900 Kemil | 61 | 3.088 | 2.79 | 33.43 | 36.22 | 0.0393 |
1000 kcmil | 61 | 3.251 | 2.79 | 34.9 | 37.69 | 0.0354 |
