| Hali ya upatikanaji: | |
|---|---|
| Wingi: | |

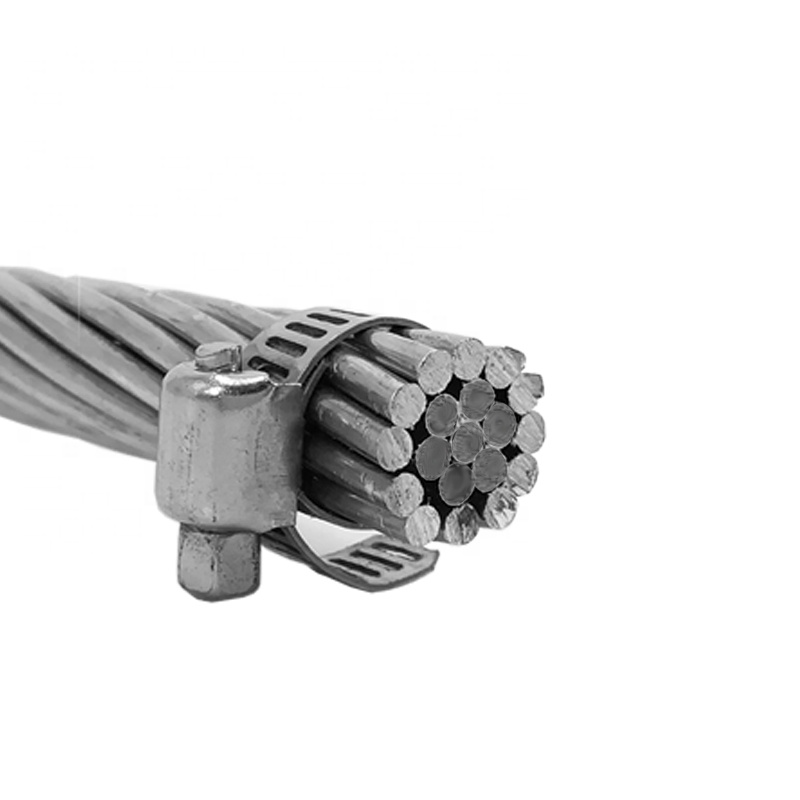

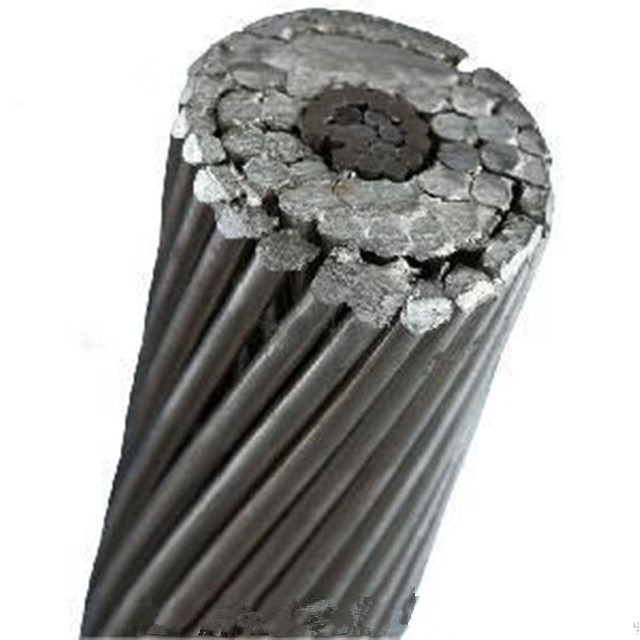

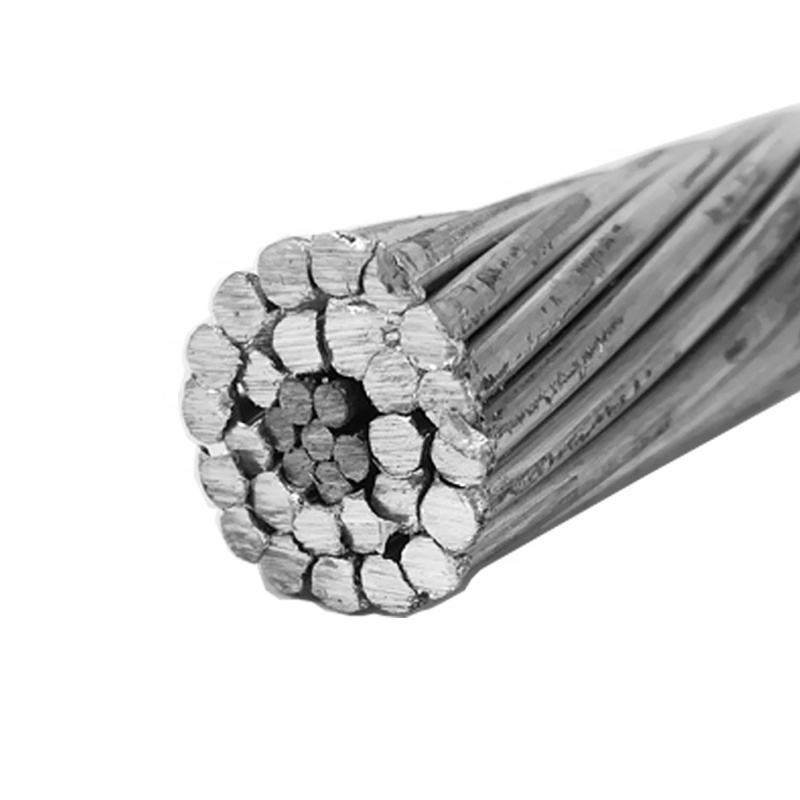

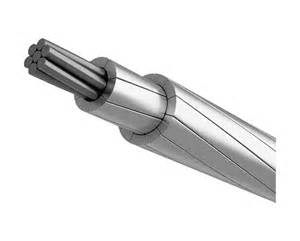

ACSR (Aluminium conductor chuma iliyoimarishwa) ni conductor inayotumika sana ya kupitisha nguvu inayojumuisha msingi wa chuma wa kati uliozungukwa na tabaka moja au zaidi za kamba za alumini. Inachanganya nguvu ya juu ya chuma na ubora bora na mali nyepesi ya alumini, na kuifanya kuwa bora kwa mistari ya nguvu ya muda mrefu.
Ujenzi:
Msingi wa chuma: Hutoa nguvu ya mitambo na upinzani kwa sagging chini ya mizigo nzito au joto la juu.
Kamba za nje za alumini: Fanya umeme kwa ufanisi wakati unakuwa na uzani mwepesi na sugu ya kutu.
Manufaa:
Nguvu ya juu ya nguvu: Inafaa kwa spans ndefu (kwa mfano, kuvuka kwa mto, maeneo ya milimani).
Gharama ya gharama kubwa: bei rahisi kuliko conductors zote au conductors za shaba.
Uimara wa mafuta: msingi wa chuma hupunguza SAG kwa joto la juu.
Upinzani wa kutu: Aluminium huunda safu ya oksidi ya kinga.
Hasara:
Reactance ya juu: Kwa sababu ya mali ya sumaku ya chuma, inayoathiri ufanisi wa uhamishaji wa nguvu.
Usumbufu wa kutu: katika maeneo ya pwani au machafu, cores za chuma za mabati au aluminium zinaweza kutumika.
Maombi:
Uwasilishaji wa nguvu ya kichwa na mistari ya usambazaji.
Umeme wa reli.
Mnara wa mawasiliano ya simu (kama waya za guy).
ACSR (Aluminium conductor chuma iliyoimarishwa) ni conductor inayotumika sana ya kupitisha nguvu inayojumuisha msingi wa chuma wa kati uliozungukwa na tabaka moja au zaidi za kamba za alumini. Inachanganya nguvu ya juu ya chuma na ubora bora na mali nyepesi ya alumini, na kuifanya kuwa bora kwa mistari ya nguvu ya muda mrefu.
Ujenzi:
Msingi wa chuma: Hutoa nguvu ya mitambo na upinzani kwa sagging chini ya mizigo nzito au joto la juu.
Kamba za nje za alumini: Fanya umeme kwa ufanisi wakati unakuwa na uzani mwepesi na sugu ya kutu.
Manufaa:
Nguvu ya juu ya nguvu: Inafaa kwa spans ndefu (kwa mfano, kuvuka kwa mto, maeneo ya milimani).
Gharama ya gharama kubwa: bei rahisi kuliko conductors zote au conductors za shaba.
Uimara wa mafuta: msingi wa chuma hupunguza SAG kwa joto la juu.
Upinzani wa kutu: Aluminium huunda safu ya oksidi ya kinga.
Hasara:
Reactance ya juu: Kwa sababu ya mali ya sumaku ya chuma, inayoathiri ufanisi wa uhamishaji wa nguvu.
Usumbufu wa kutu: katika maeneo ya pwani au machafu, cores za chuma za mabati au aluminium zinaweza kutumika.
Maombi:
Uwasilishaji wa nguvu ya kichwa na mistari ya usambazaji.
Umeme wa reli.
Mnara wa mawasiliano ya simu (kama waya za guy).
Viwango: ASTM B 232
Nambari | Eneo | Stranding & Waya Kipenyo | Takriban. Kwa jumla Dia. | Uzani | Nom. Kuvunja Mzigo | Nom.dc Upinzani saa 20 ℃ | Std Urefu | ||||||
Nom.alum | Alum. | Chuma | Jumla | Alum. | Chuma | Alum. | Chuma | Jumla | |||||
mm² | mm² | mm² | mm² | mm | mm | mm | kilo/km | kilo/km | kilo/km | Kn | Ohm/km | m. ± 5% | |
Uturuki | 6 | 13.29 | 2.19 | 15.48 | 6/1.68 | 1/1.68 | 5.04 | 37 | 17 | 54 | 5.24 | 2.1586 | 3,000 |
Swan | 4 | 21.16 | 3.55 | 24.71 | 6/2.12 | 1/2.12 | 6.36 | 58 | 27 | 85 | 8.32 | 1.3557 | 3,000 |
SWANATE | 4 | 21.16 | 5.35 | 26.51 | 7/1.96 | 1/2.61 | 6.53 | 58 | 42 | 100 | 10.53 | 1.3557 | 3.000 |
Shomoro | 2 | 33.61 | 5.61 | 39.22 | 6/2.67 | 1/2.67 | 8.01 | 92 | 44 | 136 | 12.7 | 0.8535 | 3,000 |
Sparate | 2 | 33.61 | 8.52 | 42.13 | 7/2.47 | 1/3.30 | 8.24 | 92 | 67 | 159 | 16.11 | 0.8535 | 2,500 |
Robin | 1 | 42.39 | 7.1 | 49.49 | 6/3.00 | 1/3.00 | 9 | 116 | 55 | 171 | 15.85 | 0.6767 | 2,500 |
Raven | 1/0 | 53.48 | 8.9 | 62.38 | 6/3.37 | 1/3.37 | 10.11 | 147 | 69 | 216 | 19.32 | 0.5364 | 2,000 |
Quail | 2/0 | 67.42 | 11.23 | 78.65 | 6/3.78 | 1/3.78 | 11.34 | 185 | 88 | 273 | 23.62 | 0.4255 | 3,000 |
Njiwa | 3/0 | 85.03 | 14.19 | 99.22 | 6/4.25 | 1/4.25 | 12.75 | 233 | 110 | 343 | 29.41 | 0.3373 | 2,500 |
Penguin | 4/0 | 107.23 | 17.87 | 125.1 | 6/4.77 | 1/4.77 | 14.31 | 294 | 139 | 433 | 37.06 | 0.2675 | 2,000 |
Waxwing | 266.8 | 135.16 | 7.48 | 142.64 | 16/3.09 | 1/3.09 | 15.45 | 373 | 58 | 431 | 30.27 | 0.2133 | 3,500 |
Sehemu | 266.8 | 135.16 | 22 | 157.16 | 26/2.57 | 7/2.00 | 16.28 | 374 | 172 | 546 | 50.29 | 0.2143 | 2,500 |
Mbuni | 300 | 152 | 24.71 | 176.11 | 26/2.73 | 7/2.12 | 17.28 | 421 | 193 | 614 | 56.52 | 0.1906 | 3,000 |
Merun | 336.4 | 170.45 | 9.48 | 179.93 | 16/3.47 | 1/3.47 | 17.35 | 470 | 74 | 544 | 38.23 | 0.1691 | 2,000 |
Linnet | 336.4 | 170.45 | 27.81 | 198.26 | 26/2.89 | 7/2.25 | 18.31 | 472 | 217 | 689 | 62.71 | 0.1699 | 2,500 |
Oriole | 336.4 | 170.45 | 39.81 | 210.26 | 30/2.69 | 7/2.69 | 18.83 | 473 | 311 | 784 | 77.27 | 0.1704 | 3,000 |
Chickadee | 397.5 | 201.42 | 11.16 | 212.58 | 16/3.77 | 1/3.77 | 18.85 | 555 | 87 | 642 | 43.99 | 0.1431 | 2,500 |
Brant | 397.5 | 201.42 | 26.13 | 227.55 | 24/3.27 | 7/2.18 | 19.61 | 558 | 204 | 762 | 64.69 | 0.1438 | 2,000 |
Ibis | 397.5 | 201.42 | 32.77 | 234.19 | 26/3.14 | 7/2.44 | 19.88 | 558 | 256 | 814 | 72.11 | 0.1438 | 2,500 |
Lark | 397.5 | 201.42 | 48.97 | 248.39 | 30/2.92 | 7/2.92 | 20.44 | 560 | 367 | 927 | 88.69 | 0.1442 | 2,500 |
Pelican | 477 | 241.68 | 13.42 | 255.1 | 18/4.14 | 1/4.14 | 20.7 | 666 | 105 | 771 | 52.16 | 0.1193 | 2,000 |
Flicker | 477 | 241.68 | 31.29 | 272.97 | 24/3.58 | 7/2.39 | 21.49 | 670 | 245 | 915 | 76.66 | 0.1199 | 3,000 |
Hawk | 477 | 241.68 | 39.42 | 281.1 | 26/3.44 | 7/2.67 | 21.79 | 670 | 308 | 978 | 86.65 | 0.1199 | 2,000 |
HEN | 477 | 241.68 | 56.39 | 298.07 | 30/3.20 | 7/3.20 | 22.4 | 671 | 441 | 1,112 | 105.34 | 0.1201 | 2,000 |
Osprey | 556.5 | 282 | 15.68 | 297.68 | 18/4.47 | 1/4.47 | 22.35 | 777 | 122 | 899 | 60.88 | 0.1022 | 2,000 |
Parakeet | 556.5 | 282 | 36.58 | 318.58 | 24/3.87 | 7/2.58 | 23.22 | 781 | 286 | 1,067 | 88.22 | 0.1027 | 3,000 |
Njiwa | 556.5 | 282 | 45.94 | 327.94 | 26/3.72 | 7/2.89 | 23.55 | 781 | 359 | 1,140 | 101.03 | 0.1027 | 3,000 |
Tai | 556.5 | 282 | 65.81 | 347.81 | 30/3.46 | 7/3.46 | 24.21 | 783 | 515 | 1,298 | 122.92 | 0.103 | 3,500 |
Peacock | 605 | 306.58 | 39.74 | 346.32 | 24/4.03 | 7/2.69 | 24.2 | 849 | 311 | 1,160 | 95.88 | 0.0945 | 3,000 |
Squab | 605 | 306.58 | 49.94 | 356.52 | 26/3.87 | 7/3.01 | 24.51 | 850 | 390 | 1,240 | 108.14 | 0.0945 | 3,000 |
Bata wa kuni | 605 | 306.58 | 71.55 | 378.13 | 30/3.61 | 7/3.61 | 25.25 | 851 | 560 | 1,411 | 128.84 | 0.0947 | 3,000 |
Teal | 605 | 306.58 | 69.87 | 376.45 | 30/3.61 | 19/2.16 | 25.24 | 851 | 548 | 1,399 | 133.59 | 0.0947 | 2,000 |
Kingbird | 636 | 322.26 | 17.9 | 340.16 | 18/4.78 | 1/4.78 | 23.88 | 889 | 139 | 1,028 | 69.55 | 0.08945 | 2,000 |
Rook | 636 | 322.26 | 41.81 | 364.07 | 24/4.14 | 7/2.76 | 24.84 | 893 | 326 | 1.219 | 100.63 | 0.08989 | 2,500 |
Nambari | Eneo | Stranding & Waya Kipenyo | Takriban. Kwa jumla Dia. | Uzani | Nom. Kuvunja Mzigo | Nom.dc Upinzani saa 20 ℃ | Std. Urefu | ||||||
Nom.alum | Alum. | Chuma | Jumla | Alum. | Chuma | Alum. | Chuma | Jumla | |||||
mm² | mm² | mm² | mm² | mm | mm | mm | kilo/km | kilo/km | kilo/km | Kn | Ohm/km | m. ± 5% | |
Grosbeak | 636 | 322.26 | 52.45 | 374.71 | 26/3.97 | 7/3.09 | 25.15 25.88 | 893 | 409 | 1,302 | 111.8 | 0.08989 | 3,000 |
Scoter | 636 | 322.26 | 75.22 | 397.48 | 30/3.70 | 7/3.70 | 895 | 589 | 1,484 | 135.44 | 0.09011 | 3,000 | |
Egret | 636 | 322.26 | 73.55 | 395.8 | 30/3.70 | 19/2.22 | 25.9 | 894 | 576 | 1,470 | 140.3 | 0.09011 | 3.000 |
Mwepesi | 636 | 322.26 | 8.96 | 331.22 | 36/3.38 | 1/3.38 | 23.62 | 888 | 70 | 958 | 60.52 | 0.08945 | 2,000 |
Flamingo | 666.6 | 337.74 | 43.81 | 381.55 | 24/4.23 | 7/2.82 | 25.4 | 936 | 342 | 1,278 | 105.68 | 0.08577 | 2,500 |
Gannet | 666.6 | 337.74 | 55.03 | 392.77 | 26/4.07 | 7/3.16 | 25.76 | 938 | 429 | 1,365 | 117.33 | 0.08577 | 2,500 |
Imewekwa | 715.5 | 362.58 | 46.97 | 409.55 | 24/4.39 | 7/2.92 | 26.31 | 1,005 | 367 | 1,372 | 113.35 | 0.07989 | 2,000 |
Starling | 715.5 | 362.53 | 59.03 | 421.61 | 26/4.21 | 7/3.28 | 26.68 | 1,005 | 461 | 1,466 | 125.91 | 0.07989 | 2,500 |
Redwing | 715.5 | 362.58 | 82.58 | 445.16 | 30/3.92 | 19/2.35 | 27.43 | 1,006 | 647 | 1,653 | 153.94 | 0.08009 | 2,000 |
Tern | 795 | 402.84 | 27.87 | 430.71 | 45/3.38 | 7/2.25 | 27.03 | 1,116 | 217 | 1,333 | 97.37 | 0.07191 | 2,500 |
Condor | 795 | 402.84 | 52.19 | 455.03 | 54/3.08 | 7/3.08 | 27.72 | 1,116 | 408 | 1,524 | 124.45 | 0.07191 | 3,000 |
Cuckoo | 795 | 402.84 | 52.19 | 455.03 | 24/4.62 | 7/3.08 | 27.74 | 1,116 | 408 | 1,524 | 123.94 | 0.07191 | 2,000 |
Drake | 795 | 402.84 | 65.51 | 468.45 | 26/4.44 | 7/3.45 | 28.11 | 1,116 | 512 | 1.628 | 139.92 | 0.07191 | 2,000 |
Coot | 795 | 402.84 | 11.16 | 414 | 36/3.77 | 1/3.77 | 26.41 | 1,110 | 88 | 1,198 | 74.34 | 0.07156 | 3,000 |
MALLARD | 795 | 402.84 | 91.87 | 484.71 | 30/4.14 | 19/2.48 | 28.96 | 1,119 | 719 | 1.838 | 171.18 | 0.07208 | 2,500 |
Ruddy | 900 | 456.06 | 31.54 | 487.6 | 45/3.59 | 7/2.40 | 28.73 | 1,263 | 247 | 1,510 | 108.96 | 0.06351 | 2,000 |
Canary | 900 | 456.06 | 59.1 | 515.6 | 54/3.28 | 7/3.28 | 29.52 | 1,263 | 461 | 1,724 | 140.95 | 0.06351 | 2,000 |
Reli | 954 | 483.42 | 33.42 | 516.84 | 45/3.70 | 7/2.47 | 29.61 | 1,339 | 262 | 1,601 | 115.63 | 0.05992 | 2,000 |
Catbird | 954 | 483.42 | 13.42 | 496.84 | 36/4.14 | 1/4.14 | 28.95 | 1,333 | 105 | 1,438 | 87.65 | 0.05962 | 2,500 |
Kardinali | 954 | 483.42 | 62.65 | 546.07 | 54/3.38 | 7/3.38 | 30.42 | 1,339 | 490 | 1,829 | 149.36 | 0.05992 | 2,500 |
Ortlan | 1,033.5 | 523.68 | 36.19 | 559.87 | 45/3.85 | 7/2.57 | 30.81 | 1,451 | 283 | 1,734 | 123.1 | 0.05531 | 2,000 |
Tanger | 1,033.5 | 523.68 | 14.51 | 538.19 | 36/4.30 | 1/4.30 | 30.12 | 1,443 | 113 | 1,556 | 94.93 | 0.05504 | 2,000 |
Curlew | 1,033.5 | 523.68 | 67.87 | 591.55 | 54/3.52 | 7/3.52 | 31.68 | 1,451 | 530 | 1,981 | 161.8 | 0.05531 | 2,000 |
Bluejay | 1,113 | 563.93 | 39.03 | 602.96 | 45/4.00 | 7/2.66 | 31.98 | 1,563 | 385 | 1,868 | 132.63 | 0.05136 | 2,500 |
Finch | 1,113 | 563.93 | 71.55 | 635.48 | 54/3.65 | 19/2.19 | 32.85 | 1,570 | 580 | 2,130 | 174.41 | 0.05161 | 2,000 |
Bunting | 1,192.5 | 604.26 | 41.55 | 645.81 | 45/4.14 | 7/2.76 | 33.12 | 1,674 | 327 | 2,001 | 141.79 | 0.04793 | 2.500 |
Grackle | 1,192.5 | 604.26 | 76.58 | 680.84 | 54/3.77 | 19/2.27 | 33.97 | 1,682 | 600 | 2,282 | 188.38 | 0.04817 | 2,000 |
Bittern | 1,272 | 644.51 | 44.52 | 689.03 | 45/4.27 | 7/2.85 | 34.17 | 1,785 | 349 | 2,134 | 151.48 | 0.04494 | 2,500 |
Pheasant | 1,272 | 644.51 | 81.63 | 726.19 | 54/3.90 | 19/2.34 | 35.1 | 1,795 | 638 | 2,433 | 194 | 0.04516 | 2.000 |
Skylark | 1,272 | 644.51 | 17.87 | 662.38 731.94 | 36/4.78 | 1/4.78 | 33.42 | 1.777 | 140 | 1.917 | 115.85 | 0.04472 | 2,000 |
Dipper | 1,351.5 | 684.84 684.84 | 47.1 | 45/4.40 | 7/2.92 | 35.16 | 1,898 | 368 | 2,266 | 160.7 | 0.0423 | 2,000 | |
Martin | 1,351.5 | 88.71 | 771.55 775.42 | 54/4.02 | 19/2.41 | 36.17 | 1,906 | 679 | 2,585 | 206.05 | 0.0425 | 2,000 | |
Bobolink | 1,431 | 725.1 | 50.32 | 45/4.53 | 7/3.02 | 36.24 | 2,009 | 393 | 2,402 | 170.71 | 0.03994 | 2,000 | |
Plover | 1,431 | 725.1 | 91.87 | 816.97 | 54/4.14 | 19/2.48 | 37.24 | 2,019 | 719 | 2,738 | 218.24 | 0.04013 | 2,500 |
Nuthatch | 1,510.5 | 765.35 | 52.9 | 818.25 | 45/4.65 | 7/3.10 | 37.2 | 2,120 | 414 | 2,534 2,890 2,667 3,042 222 | 177.89 | 0.03784 | 2,000 |
Parrot | 1,510.5 | 765.35 | 96.84 | 862.19 | 54/4.25 | 19/2.55 | 38.25 | 2,131 | 759 | 230.2 | 0.03802 | 2,000 | |
Lapwing | 1,590 | 805.68 | 55.48 102.13 | 861.16 | 45/4.77 | 7/3.18 | 38.16 | 2,232 2,243 | 435 799 | 187.02 | 0.03595 | 2,000 | |
Falcon | 1,590 | 805.68 | 907.81 | 54/4.36 | 19/2.62 | 39.26 | 242.55 | 0.03613 | 2,000 | ||||
Grouse | 80 | 40.52 | 14.13 | 54.65 | 8/2.54 | 1/4.24 | 9.32 | 112 | 110 | 23.6 | 0.7115 | 2,500 | |
Petrel | 101.8 | 51.61 | 30.06 | 81.67 | 12/2.34 | 7/2.34 | 11.71 12.22 13.46 | 143 156 189 | 235 256 311 367 409 441 722 488 | 378 412 500 590 657 709 1007 785 | 41.75 | 0.5613 | 2,000 2000 2000 2000 2000 2000 3,000 2,500 3.000 |
Minongoca | 110.8 | 56.13 | 32.77 | 88.9 | 12/2.44 | 7/2.44 | 51.25 61.7 72.55 78.5 84.8 128.8 93.9 | 0.5161 0.4248 0.3595 0.3237 0.2995 0.2813 0.2705 | |||||
Leghorn | 134.6 | 68.19 | 39.81 | 108 | 12/2.69 | 7/2.69 | |||||||
Guinea Dotterel Dorking | 159 | 80.58 | 46.97 | 127.55 | 12/2.92 | 7/2.92 | 14.63 15.42 16.03 18.14 16.84 | 223 248 266 285 297 | |||||
176.9 | 89.48 | 52.19 | 141.67 | 12/3.08 | 7/3.08 | ||||||||
190.8 203.2 211.8 | 96.71 102.97 107.1 | 56.39 91.87 62.45 | 153. 94.84 169.55 | 12/3.20 18/2.86 12/3.37 | 7/3.20 19/2.48 7/3.37 | ||||||||
Brahma Cochin | |||||||||||||
AACSR
Bidhaa: conductors zilizoimarishwa za chuma
Viwango: kawaida Allaluminumalloy NFC 34- 125
Kuchora: Uhandisi wa Umeme wa Nishati ya Mashariki
Designation | Chuma Eneo | Al Aloi Eneo | Tot. | Usawa -nt cu Eneo | Nambari | Takriban. Dia ya jumla. | Nom. Kuvunja Mzigo | Nom.dc Upinzani saa 20 ℃ | Std. Uzani | Std. Urefu | ||||
Chuma | Al alloy | Msingi wa chuma | Comp lete Cond. | |||||||||||
mm² | mm² | mm² | mm² | Hapana. | Hapana. | mm | mm | Dan | Ohm/km | kilo/km | m ± 5% | |||
Phlox 37-7 | 9.42 | 28.27 | 37.69 | 15.4 | 3 | 2.00 | 9 | 2.00 | 4.3 | 8.3 | 2,360 | 1.17 | 155 | 4,000 |
Phlox 59-7 | 21.99 | 37.7 | 59.69 | 20.6 | 7 | 2.00 | 12 | 2.00 | 6 | 10 | 4,560 | 0.88 | 276 | 4,000 |
Phlox 75-5 | 27.83 | 47.71 | 75.54 | 26 | 7 | 2.25 | 12 | 2.25 | 6.75 | 11.25 | 5,770 | 0.695 | 348 | 3,000 |
Phlox 116-2 | 59.69 | 56.55 | 116.24 | 30.9 | 19 | 2.00 | 18 | 2.00 | 10 | 14 | 10,815 | 0.58 | 636 | 3,000 |
Phlox 147-1 | 75.54 | 71.57 | 147.11 | 39.1 | 19 | 2.25 | 18 | 2.25 | 11.25 | 15.75 | 13,685 | 0.466 | 802 | 3,000 |
Pastel 147-1 | 27.83 | 119.28 | 147.11 | 65.2 | 7 | 2.25 | 30 | 2.25 | 6.75 | 15.75 | 8,185 | 0.279 | 547 | 3,000 |
PHLOX181-6 | 93.27 | 88.36 | 181.63 | 48.3 | 19 | 2.50 | 18 | 2.50 | 12.5 | 17.5 | 16,895 | 0.378 | 990 | 3,000 |
Pastel 181-6 | 34.36 | 147.26 | 181.62 | 80.5 | 7 | 2.50 | 30 | 2.50 | 7.5 | 17.5 | 10,120 | 0.227 | 675 | 3,000 |
Phlox 228 | 116.99 | 110.83 | 227.82 | 60.5 | 19 | 2.80 | 18 | 2.80 | 14 | 19.6 | 21,200 | 0.3 | 1,244 | 2,000 |
Pastel 228 | 43.1 | 184.72 | 227.82 | 101 | 7 | 2.80 | 30 | 2.80 | 8.4 | 19.6 | 12,680 | 0.18 | 848 | 2,000 |
Phlox 288 | 148.07 | 140.28 | 288.35 | 76.6 | 19 | 3.15 | 18 | 3.15 | 15.75 | 22.05 | 26,800 | 0.237 | 1,570 | 2,000 |
Pastel 288 | 54.55 | 233.8 | 288.35 | 127.7 | 7 | 3.15 | 30 | 3.15 | 9.45 | 22.05 | 16,050 | 0.142 | 1,074 | 2,000 |
Pastel 299 | 93.27 | 206.17 | 299.44 | 112.7 | 19 | 2.50 | 42 | 2.50 | 12.5 | 22.5 | 20,875 | 0.162 | 1,320 | 2,000 |
Phlox 94-1 | 42.12 | 51.95 | 94.07 | 28.4 | 19 | 1.68 | 15 | 2.10 | 8.4 | 12.8 | 8,035 | 0.642 | 481 | 4,000 |
Pastel412 | 85.95 | 325.72 | 411.67 | 178 | 19 | 2.40 | 32 | 3.60 | 12 | 26.4 | 20,830 | 0.103 | 1,593 | 2,500 |
AAAC
Bidhaa: allaluminum alloy conductors
Viwango: ASTM B 399
Mchoro wa kawaida:
Nambari | Eneo | Saizi na kukwama kwa ACSR na kipenyo sawa | No.na kipenyo cha waya | Kwa jumla Kipenyo | Uzani | Nominal Kuvunja Mzigo | Kiwango Urefu | ||
Nominal | Halisi | ||||||||
MCM | mm² | AWG au MCM | Al/chuma | mm | mm | kilo/km | Kn | M ± 5 | |
Akron | 30.58 | 15.48 | 6 | 6/1 | 7 × 1.68 | 5.04 | 42.7 | 4.92 | 3,000 |
Alton | 48.69 | 24.71 | 4 | 6/1 | 7 × 2.12 | 6.35 | 68 | 7.84 | 3,000 |
Ames | 77.47 | 39.22 | 2 | 6/1 | 7 × 2.67 | 8.02 | 108 | 12.45 | 2,000 |
Azusa | 123.3 | 62.38 | 1/0 | 6/1 | 7 × 3.37 | 10.11 | 172 | 18.97 | 2,000 |
Anaheim | 155.4 | 78.65 | 2/0 | 6/1 | 7 × 3.78 | 11.35 | 217 | 23.93 | 3,000 |
Amherst | 195.7 | 99.22 | 3/0 | 6/1 | 7 × 4.25 | 12.75 | 273 | 30.18 | 2,500 |
Muungano | 246.9 | 125.1 | 4/0 | 6/1 | 7 × 4.77 | 14.31 | 345 | 38.05 | 2,000 |
Butte | 312.8 | 158.6 | 266.8 | 26/7 | 19 × 3.26 | 16.3 | 437 | 48.76 | 3,000 |
Canton | 394.5 | 199.9 | 336.4 | 26/7 | 19 × 3.66 | 18.3 | 551 | 58.91 | 2,500 |
Cairo | 465.4 | 235.8 | 397.5 | 26/7 | 19 × 3.98 | 19.88 | 650 | 69.48 | 2,000 |
Darien | 559.5 | 283.5 | 477 | 26/7 | 19 × 4.36 | 21.79 | 781 | 83.52 | 2,000 |
Elgin | 652.4 | 330.6 | 556.5 | 26/7 | 19 × 4.71 | 23.54 | 911 | 97.42 | 1,500 |
Flint | 740.8 | 375.3 | 636 | 26/7 | 37 × 3.59 | 25.16 | 1,035 | 108.21 | 3,000 |
Greeley | 927.2 | 469.8 | 795 | 26/7 | 37 × 4.02 | 28.14 | 1,295 | 135.47 | 2,500 |
AAAC
Bidhaa: conductors allaluminum alloy
Viwango: ASTM B 399
Mchoro wa kawaida:
Eneo | Stranding na kipenyo cha waya | Takriban. Kwa jumla Kipenyo | Uzani | Nominal Kuvunja Mzigo | Nominenal dc Upinzani saa 20 ℃ | Kiwango Urefu | |
Nominal | Halisi | ||||||
Awg au MCM | mm² | mm | mm | kilo/km | Kn | Ohm/km | M ± 5 |
6 | 13.3 | 7/1.554 | 4.67 | 37 | 4.22 | 2.5199 | 3,500 |
4 | 21.15 | 7/1.961 | 5.89 | 58 | 6.71 | 1.5824 | 3,000 |
2 | 33.63 | 7/2.474 | 7.42 | 93 | 10.68 | 0.9942 | 2,500 |
1/0 | 53.48 | 7/3.119 | 9.36 | 148 | 16.97 | 0.6256 | 2,000 |
2/0 | 67.42 | 7/3.503 | 10.51 | 186 | 20.52 | 0.4959 | 3,500 |
3/0 | 85.03 | 7/3.932 | 11.8 | 234 | 25.86 | 0.3936 | 3,000 |
4/0 | 107.23 | 7/4.417 | 13.26 | 296 | 32.63 | 0.3119 | 2,000 |
250 | 126.66 | 19/2.913 | 14.57 | 349 | 38.93 | 0.2642 | 2,000 |
300 | 152.1 | 19/3.193 | 15.97 | 419 | 46.77 | 0.2199 | 3,000 |
350 | 177.35 | 19/3.447 | 17.24 | 489 | 52.25 | 0.1887 | 3,000 |
400 | 202.71 | 19/3.686 | 18.43 | 559 | 59.74 | 0.165 | 2,500 |
450 | 228 | 19/3.909 | 19.55 | 629 | 67.19 | 0.1467 | 2,000 |
500 | 253.35 | 19/4.120 | 20.6 | 698 | 74.64 | 0.1321 | 2,000 |
550 | 278.6 | 37/3.096 | 21.67 | 768 | 83.8 | 0.1202 | 2,000 |
600 | 303.8 | 37/3.233 | 22.63 | 838 | 91.38 | 0.1102 | 2,000 |
650 | 329.25 | 37/3.366 | 23.56 | 908 | 97.94 | 0.1016 | 2,000 |
700 | 354.55 | 37/3.493 | 24.45 | 978 | 102.2 | 0.0944 | 3,500 |
750 | 380.2 | 37/3.617 | 25.32 | 1,049 | 109.6 | 0.088 | 3,000 |
800 | 405.15 | 37/3.734 | 26.14 | 1,117 | 116.8 | 0.0826 | 3,000 |
900 | 456.16 | 37/3.962 | 27.73 | 1,258 | 131.5 | 0.0733 | 3,000 |
1,000 | 506.71 | 37/4.176 | 29.23 | 1,399 | 146.1 | 0.066 | 2,500 |
AAAC
Bidhaa: conductors allaluminum alloy
Viwango: BS EN 50182
Mchoro wa kawaida:
Nambari | Eneo | Stranding na waya Dia. | Takriban. Kipenyo cha Oyerall | Uzani | Nominal Kuvunja Mzigo | Nominenal dc Upinzani saa 20 ℃ | Kiwango Urefu | |
Nominal | Halisi | |||||||
mm² | mm² | mm | mm | kilo/km | Kn | Ohm/km | M ± 5 | |
10 | 11.9 | 7/1.47 | 4.41 | 32 | 3.33 | 2.277 | 2,500 | |
Sanduku | 15 | 18.8 | 7/1.85 | 5.55 | 51 | 5.27 | 1.749 | 2,000 |
Acacia | 20 | 23.9 | 7/2.08 | 6.24 | 65 | 6.7 | 1.384 | 2,500 |
Mlozi | 25 | 30.1 | 7/2.34 | 7.02 | 82 | 8.44 | 1.094 | 2,000 |
Ceda | 30 | 35.5 | 7/2.54 | 7.62 | 97 | 9.95 | 0.9281 | 2,000 |
35 | 42.2 | 7/2.77 | 8.31 | 115 | 11.83 | 0.78 | 2,000 | |
Fir | 40 | 47.8 | 7/2.95 | 8.85 | 131 | 13.4 | 0.688 | 2,500 |
Hazel | 50 | 59.9 | 7/3.30 | 9.9 | 164 | 16.8 | 0.5498 | 2,000 |
PINE | 60 | 71.7 | 7/3.61 | 10.83 | 196 | 20.1 | 0.4595 | 3,000 |
70 | 84.1 | 7/3.91 | 11.73 | 230 | 23.57 | 0.3917 | 3,000 | |
Willow | 75 | 89.8 | 7/4.04 | 12.12 | 246 | 25.17 | 0.3669 | 2,500 |
80 | 96.5 | 7/4.19 | 12.57 | 264 | 27.04 | 0.341 | 2,500 | |
90 | 108.8 | 7/4.45 | 13.35 | 298 | 30.5 | 0.3026 | 2,000 | |
Oak | 100 | 118.9 | 7/4.65 | 13.95 | 325 | 33.3 | 0.2769 | 2,000 |
100 | 118.7 | 19/2.82 | 14.1 | 326 | 33.3 | 0.2786 | 2,000 | |
Mulberry | 125 | 151.1 | 19/3.18 | 15.9 | 415 | 42.3 | 0.219 | 3,000 |
Majivu | 150 | 180.7 | 19/3.48 | 17.4 | 497 | 50.6 | 0.183 | 3,000 |
Elm | 175 | 211 | 19/3.76 | 18.8 | 580 | 59.1 | 0.1568 | 2,500 |
Poplar | 200 | 239 | 37/2.87 | 20.09 | 660 | 67 | 0.1387 | 2,500 |
225 | 270.3 | 37/3.05 | 21.35 | 744 | 75.7 | 0.1224 | 2,000 | |
Sycamore | 250 | 303 | 37/3.23 | 22.61 | 835 | 84.9 | 0.1094 | 2,000 |
UPAS | 300 | 362.1 | 37/3.53 | 24.71 | 998 | 101.5 | 0.09155 | 2,000 |
350 | 421.8 | 37/3.81 | 26.67 | 1163 | 118.2 | 0.0786 | 3,000 | |
Yew | 400 | 479.9 | 37/4.06 | 28.42 | 1323 | 134.5 | 0.06908 | 2,500 |
Viwango: ASTM B 232
Nambari | Eneo | Stranding & Waya Kipenyo | Takriban. Kwa jumla Dia. | Uzani | Nom. Kuvunja Mzigo | Nom.dc Upinzani saa 20 ℃ | Std Urefu | ||||||
Nom.alum | Alum. | Chuma | Jumla | Alum. | Chuma | Alum. | Chuma | Jumla | |||||
mm² | mm² | mm² | mm² | mm | mm | mm | kilo/km | kilo/km | kilo/km | Kn | Ohm/km | m. ± 5% | |
Uturuki | 6 | 13.29 | 2.19 | 15.48 | 6/1.68 | 1/1.68 | 5.04 | 37 | 17 | 54 | 5.24 | 2.1586 | 3,000 |
Swan | 4 | 21.16 | 3.55 | 24.71 | 6/2.12 | 1/2.12 | 6.36 | 58 | 27 | 85 | 8.32 | 1.3557 | 3,000 |
SWANATE | 4 | 21.16 | 5.35 | 26.51 | 7/1.96 | 1/2.61 | 6.53 | 58 | 42 | 100 | 10.53 | 1.3557 | 3.000 |
Shomoro | 2 | 33.61 | 5.61 | 39.22 | 6/2.67 | 1/2.67 | 8.01 | 92 | 44 | 136 | 12.7 | 0.8535 | 3,000 |
Sparate | 2 | 33.61 | 8.52 | 42.13 | 7/2.47 | 1/3.30 | 8.24 | 92 | 67 | 159 | 16.11 | 0.8535 | 2,500 |
Robin | 1 | 42.39 | 7.1 | 49.49 | 6/3.00 | 1/3.00 | 9 | 116 | 55 | 171 | 15.85 | 0.6767 | 2,500 |
Raven | 1/0 | 53.48 | 8.9 | 62.38 | 6/3.37 | 1/3.37 | 10.11 | 147 | 69 | 216 | 19.32 | 0.5364 | 2,000 |
Quail | 2/0 | 67.42 | 11.23 | 78.65 | 6/3.78 | 1/3.78 | 11.34 | 185 | 88 | 273 | 23.62 | 0.4255 | 3,000 |
Njiwa | 3/0 | 85.03 | 14.19 | 99.22 | 6/4.25 | 1/4.25 | 12.75 | 233 | 110 | 343 | 29.41 | 0.3373 | 2,500 |
Penguin | 4/0 | 107.23 | 17.87 | 125.1 | 6/4.77 | 1/4.77 | 14.31 | 294 | 139 | 433 | 37.06 | 0.2675 | 2,000 |
Waxwing | 266.8 | 135.16 | 7.48 | 142.64 | 16/3.09 | 1/3.09 | 15.45 | 373 | 58 | 431 | 30.27 | 0.2133 | 3,500 |
Sehemu | 266.8 | 135.16 | 22 | 157.16 | 26/2.57 | 7/2.00 | 16.28 | 374 | 172 | 546 | 50.29 | 0.2143 | 2,500 |
Mbuni | 300 | 152 | 24.71 | 176.11 | 26/2.73 | 7/2.12 | 17.28 | 421 | 193 | 614 | 56.52 | 0.1906 | 3,000 |
Merun | 336.4 | 170.45 | 9.48 | 179.93 | 16/3.47 | 1/3.47 | 17.35 | 470 | 74 | 544 | 38.23 | 0.1691 | 2,000 |
Linnet | 336.4 | 170.45 | 27.81 | 198.26 | 26/2.89 | 7/2.25 | 18.31 | 472 | 217 | 689 | 62.71 | 0.1699 | 2,500 |
Oriole | 336.4 | 170.45 | 39.81 | 210.26 | 30/2.69 | 7/2.69 | 18.83 | 473 | 311 | 784 | 77.27 | 0.1704 | 3,000 |
Chickadee | 397.5 | 201.42 | 11.16 | 212.58 | 16/3.77 | 1/3.77 | 18.85 | 555 | 87 | 642 | 43.99 | 0.1431 | 2,500 |
Brant | 397.5 | 201.42 | 26.13 | 227.55 | 24/3.27 | 7/2.18 | 19.61 | 558 | 204 | 762 | 64.69 | 0.1438 | 2,000 |
Ibis | 397.5 | 201.42 | 32.77 | 234.19 | 26/3.14 | 7/2.44 | 19.88 | 558 | 256 | 814 | 72.11 | 0.1438 | 2,500 |
Lark | 397.5 | 201.42 | 48.97 | 248.39 | 30/2.92 | 7/2.92 | 20.44 | 560 | 367 | 927 | 88.69 | 0.1442 | 2,500 |
Pelican | 477 | 241.68 | 13.42 | 255.1 | 18/4.14 | 1/4.14 | 20.7 | 666 | 105 | 771 | 52.16 | 0.1193 | 2,000 |
Flicker | 477 | 241.68 | 31.29 | 272.97 | 24/3.58 | 7/2.39 | 21.49 | 670 | 245 | 915 | 76.66 | 0.1199 | 3,000 |
Hawk | 477 | 241.68 | 39.42 | 281.1 | 26/3.44 | 7/2.67 | 21.79 | 670 | 308 | 978 | 86.65 | 0.1199 | 2,000 |
HEN | 477 | 241.68 | 56.39 | 298.07 | 30/3.20 | 7/3.20 | 22.4 | 671 | 441 | 1,112 | 105.34 | 0.1201 | 2,000 |
Osprey | 556.5 | 282 | 15.68 | 297.68 | 18/4.47 | 1/4.47 | 22.35 | 777 | 122 | 899 | 60.88 | 0.1022 | 2,000 |
Parakeet | 556.5 | 282 | 36.58 | 318.58 | 24/3.87 | 7/2.58 | 23.22 | 781 | 286 | 1,067 | 88.22 | 0.1027 | 3,000 |
Njiwa | 556.5 | 282 | 45.94 | 327.94 | 26/3.72 | 7/2.89 | 23.55 | 781 | 359 | 1,140 | 101.03 | 0.1027 | 3,000 |
Tai | 556.5 | 282 | 65.81 | 347.81 | 30/3.46 | 7/3.46 | 24.21 | 783 | 515 | 1,298 | 122.92 | 0.103 | 3,500 |
Peacock | 605 | 306.58 | 39.74 | 346.32 | 24/4.03 | 7/2.69 | 24.2 | 849 | 311 | 1,160 | 95.88 | 0.0945 | 3,000 |
Squab | 605 | 306.58 | 49.94 | 356.52 | 26/3.87 | 7/3.01 | 24.51 | 850 | 390 | 1,240 | 108.14 | 0.0945 | 3,000 |
Bata wa kuni | 605 | 306.58 | 71.55 | 378.13 | 30/3.61 | 7/3.61 | 25.25 | 851 | 560 | 1,411 | 128.84 | 0.0947 | 3,000 |
Teal | 605 | 306.58 | 69.87 | 376.45 | 30/3.61 | 19/2.16 | 25.24 | 851 | 548 | 1,399 | 133.59 | 0.0947 | 2,000 |
Kingbird | 636 | 322.26 | 17.9 | 340.16 | 18/4.78 | 1/4.78 | 23.88 | 889 | 139 | 1,028 | 69.55 | 0.08945 | 2,000 |
Rook | 636 | 322.26 | 41.81 | 364.07 | 24/4.14 | 7/2.76 | 24.84 | 893 | 326 | 1.219 | 100.63 | 0.08989 | 2,500 |
Nambari | Eneo | Stranding & Waya Kipenyo | Takriban. Kwa jumla Dia. | Uzani | Nom. Kuvunja Mzigo | Nom.dc Upinzani saa 20 ℃ | Std. Urefu | ||||||
Nom.alum | Alum. | Chuma | Jumla | Alum. | Chuma | Alum. | Chuma | Jumla | |||||
mm² | mm² | mm² | mm² | mm | mm | mm | kilo/km | kilo/km | kilo/km | Kn | Ohm/km | m. ± 5% | |
Grosbeak | 636 | 322.26 | 52.45 | 374.71 | 26/3.97 | 7/3.09 | 25.15 25.88 | 893 | 409 | 1,302 | 111.8 | 0.08989 | 3,000 |
Scoter | 636 | 322.26 | 75.22 | 397.48 | 30/3.70 | 7/3.70 | 895 | 589 | 1,484 | 135.44 | 0.09011 | 3,000 | |
Egret | 636 | 322.26 | 73.55 | 395.8 | 30/3.70 | 19/2.22 | 25.9 | 894 | 576 | 1,470 | 140.3 | 0.09011 | 3.000 |
Mwepesi | 636 | 322.26 | 8.96 | 331.22 | 36/3.38 | 1/3.38 | 23.62 | 888 | 70 | 958 | 60.52 | 0.08945 | 2,000 |
Flamingo | 666.6 | 337.74 | 43.81 | 381.55 | 24/4.23 | 7/2.82 | 25.4 | 936 | 342 | 1,278 | 105.68 | 0.08577 | 2,500 |
Gannet | 666.6 | 337.74 | 55.03 | 392.77 | 26/4.07 | 7/3.16 | 25.76 | 938 | 429 | 1,365 | 117.33 | 0.08577 | 2,500 |
Imewekwa | 715.5 | 362.58 | 46.97 | 409.55 | 24/4.39 | 7/2.92 | 26.31 | 1,005 | 367 | 1,372 | 113.35 | 0.07989 | 2,000 |
Starling | 715.5 | 362.53 | 59.03 | 421.61 | 26/4.21 | 7/3.28 | 26.68 | 1,005 | 461 | 1,466 | 125.91 | 0.07989 | 2,500 |
Redwing | 715.5 | 362.58 | 82.58 | 445.16 | 30/3.92 | 19/2.35 | 27.43 | 1,006 | 647 | 1,653 | 153.94 | 0.08009 | 2,000 |
Tern | 795 | 402.84 | 27.87 | 430.71 | 45/3.38 | 7/2.25 | 27.03 | 1,116 | 217 | 1,333 | 97.37 | 0.07191 | 2,500 |
Condor | 795 | 402.84 | 52.19 | 455.03 | 54/3.08 | 7/3.08 | 27.72 | 1,116 | 408 | 1,524 | 124.45 | 0.07191 | 3,000 |
Cuckoo | 795 | 402.84 | 52.19 | 455.03 | 24/4.62 | 7/3.08 | 27.74 | 1,116 | 408 | 1,524 | 123.94 | 0.07191 | 2,000 |
Drake | 795 | 402.84 | 65.51 | 468.45 | 26/4.44 | 7/3.45 | 28.11 | 1,116 | 512 | 1.628 | 139.92 | 0.07191 | 2,000 |
Coot | 795 | 402.84 | 11.16 | 414 | 36/3.77 | 1/3.77 | 26.41 | 1,110 | 88 | 1,198 | 74.34 | 0.07156 | 3,000 |
MALLARD | 795 | 402.84 | 91.87 | 484.71 | 30/4.14 | 19/2.48 | 28.96 | 1,119 | 719 | 1.838 | 171.18 | 0.07208 | 2,500 |
Ruddy | 900 | 456.06 | 31.54 | 487.6 | 45/3.59 | 7/2.40 | 28.73 | 1,263 | 247 | 1,510 | 108.96 | 0.06351 | 2,000 |
Canary | 900 | 456.06 | 59.1 | 515.6 | 54/3.28 | 7/3.28 | 29.52 | 1,263 | 461 | 1,724 | 140.95 | 0.06351 | 2,000 |
Reli | 954 | 483.42 | 33.42 | 516.84 | 45/3.70 | 7/2.47 | 29.61 | 1,339 | 262 | 1,601 | 115.63 | 0.05992 | 2,000 |
Catbird | 954 | 483.42 | 13.42 | 496.84 | 36/4.14 | 1/4.14 | 28.95 | 1,333 | 105 | 1,438 | 87.65 | 0.05962 | 2,500 |
Kardinali | 954 | 483.42 | 62.65 | 546.07 | 54/3.38 | 7/3.38 | 30.42 | 1,339 | 490 | 1,829 | 149.36 | 0.05992 | 2,500 |
Ortlan | 1,033.5 | 523.68 | 36.19 | 559.87 | 45/3.85 | 7/2.57 | 30.81 | 1,451 | 283 | 1,734 | 123.1 | 0.05531 | 2,000 |
Tanger | 1,033.5 | 523.68 | 14.51 | 538.19 | 36/4.30 | 1/4.30 | 30.12 | 1,443 | 113 | 1,556 | 94.93 | 0.05504 | 2,000 |
Curlew | 1,033.5 | 523.68 | 67.87 | 591.55 | 54/3.52 | 7/3.52 | 31.68 | 1,451 | 530 | 1,981 | 161.8 | 0.05531 | 2,000 |
Bluejay | 1,113 | 563.93 | 39.03 | 602.96 | 45/4.00 | 7/2.66 | 31.98 | 1,563 | 385 | 1,868 | 132.63 | 0.05136 | 2,500 |
Finch | 1,113 | 563.93 | 71.55 | 635.48 | 54/3.65 | 19/2.19 | 32.85 | 1,570 | 580 | 2,130 | 174.41 | 0.05161 | 2,000 |
Bunting | 1,192.5 | 604.26 | 41.55 | 645.81 | 45/4.14 | 7/2.76 | 33.12 | 1,674 | 327 | 2,001 | 141.79 | 0.04793 | 2.500 |
Grackle | 1,192.5 | 604.26 | 76.58 | 680.84 | 54/3.77 | 19/2.27 | 33.97 | 1,682 | 600 | 2,282 | 188.38 | 0.04817 | 2,000 |
Bittern | 1,272 | 644.51 | 44.52 | 689.03 | 45/4.27 | 7/2.85 | 34.17 | 1,785 | 349 | 2,134 | 151.48 | 0.04494 | 2,500 |
Pheasant | 1,272 | 644.51 | 81.63 | 726.19 | 54/3.90 | 19/2.34 | 35.1 | 1,795 | 638 | 2,433 | 194 | 0.04516 | 2.000 |
Skylark | 1,272 | 644.51 | 17.87 | 662.38 731.94 | 36/4.78 | 1/4.78 | 33.42 | 1.777 | 140 | 1.917 | 115.85 | 0.04472 | 2,000 |
Dipper | 1,351.5 | 684.84 684.84 | 47.1 | 45/4.40 | 7/2.92 | 35.16 | 1,898 | 368 | 2,266 | 160.7 | 0.0423 | 2,000 | |
Martin | 1,351.5 | 88.71 | 771.55 775.42 | 54/4.02 | 19/2.41 | 36.17 | 1,906 | 679 | 2,585 | 206.05 | 0.0425 | 2,000 | |
Bobolink | 1,431 | 725.1 | 50.32 | 45/4.53 | 7/3.02 | 36.24 | 2,009 | 393 | 2,402 | 170.71 | 0.03994 | 2,000 | |
Plover | 1,431 | 725.1 | 91.87 | 816.97 | 54/4.14 | 19/2.48 | 37.24 | 2,019 | 719 | 2,738 | 218.24 | 0.04013 | 2,500 |
Nuthatch | 1,510.5 | 765.35 | 52.9 | 818.25 | 45/4.65 | 7/3.10 | 37.2 | 2,120 | 414 | 2,534 2,890 2,667 3,042 222 | 177.89 | 0.03784 | 2,000 |
Parrot | 1,510.5 | 765.35 | 96.84 | 862.19 | 54/4.25 | 19/2.55 | 38.25 | 2,131 | 759 | 230.2 | 0.03802 | 2,000 | |
Lapwing | 1,590 | 805.68 | 55.48 102.13 | 861.16 | 45/4.77 | 7/3.18 | 38.16 | 2,232 2,243 | 435 799 | 187.02 | 0.03595 | 2,000 | |
Falcon | 1,590 | 805.68 | 907.81 | 54/4.36 | 19/2.62 | 39.26 | 242.55 | 0.03613 | 2,000 | ||||
Grouse | 80 | 40.52 | 14.13 | 54.65 | 8/2.54 | 1/4.24 | 9.32 | 112 | 110 | 23.6 | 0.7115 | 2,500 | |
Petrel | 101.8 | 51.61 | 30.06 | 81.67 | 12/2.34 | 7/2.34 | 11.71 12.22 13.46 | 143 156 189 | 235 256 311 367 409 441 722 488 | 378 412 500 590 657 709 1007 785 | 41.75 | 0.5613 | 2,000 2000 2000 2000 2000 2000 3,000 2,500 3.000 |
Minongoca | 110.8 | 56.13 | 32.77 | 88.9 | 12/2.44 | 7/2.44 | 51.25 61.7 72.55 78.5 84.8 128.8 93.9 | 0.5161 0.4248 0.3595 0.3237 0.2995 0.2813 0.2705 | |||||
Leghorn | 134.6 | 68.19 | 39.81 | 108 | 12/2.69 | 7/2.69 | |||||||
Guinea Dotterel Dorking | 159 | 80.58 | 46.97 | 127.55 | 12/2.92 | 7/2.92 | 14.63 15.42 16.03 18.14 16.84 | 223 248 266 285 297 | |||||
176.9 | 89.48 | 52.19 | 141.67 | 12/3.08 | 7/3.08 | ||||||||
190.8 203.2 211.8 | 96.71 102.97 107.1 | 56.39 91.87 62.45 | 153. 94.84 169.55 | 12/3.20 18/2.86 12/3.37 | 7/3.20 19/2.48 7/3.37 | ||||||||
Brahma Cochin | |||||||||||||
AACSR
Bidhaa: conductors zilizoimarishwa za chuma
Viwango: kawaida Allaluminumalloy NFC 34- 125
Kuchora: Uhandisi wa Umeme wa Nishati ya Mashariki
Designation | Chuma Eneo | Al Aloi Eneo | Tot. | Usawa -nt cu Eneo | Nambari | Takriban. Dia ya jumla. | Nom. Kuvunja Mzigo | Nom.dc Upinzani saa 20 ℃ | Std. Uzani | Std. Urefu | ||||
Chuma | Al alloy | Msingi wa chuma | Comp lete Cond. | |||||||||||
mm² | mm² | mm² | mm² | Hapana. | Hapana. | mm | mm | Dan | Ohm/km | kilo/km | m ± 5% | |||
Phlox 37-7 | 9.42 | 28.27 | 37.69 | 15.4 | 3 | 2.00 | 9 | 2.00 | 4.3 | 8.3 | 2,360 | 1.17 | 155 | 4,000 |
Phlox 59-7 | 21.99 | 37.7 | 59.69 | 20.6 | 7 | 2.00 | 12 | 2.00 | 6 | 10 | 4,560 | 0.88 | 276 | 4,000 |
Phlox 75-5 | 27.83 | 47.71 | 75.54 | 26 | 7 | 2.25 | 12 | 2.25 | 6.75 | 11.25 | 5,770 | 0.695 | 348 | 3,000 |
Phlox 116-2 | 59.69 | 56.55 | 116.24 | 30.9 | 19 | 2.00 | 18 | 2.00 | 10 | 14 | 10,815 | 0.58 | 636 | 3,000 |
Phlox 147-1 | 75.54 | 71.57 | 147.11 | 39.1 | 19 | 2.25 | 18 | 2.25 | 11.25 | 15.75 | 13,685 | 0.466 | 802 | 3,000 |
Pastel 147-1 | 27.83 | 119.28 | 147.11 | 65.2 | 7 | 2.25 | 30 | 2.25 | 6.75 | 15.75 | 8,185 | 0.279 | 547 | 3,000 |
PHLOX181-6 | 93.27 | 88.36 | 181.63 | 48.3 | 19 | 2.50 | 18 | 2.50 | 12.5 | 17.5 | 16,895 | 0.378 | 990 | 3,000 |
Pastel 181-6 | 34.36 | 147.26 | 181.62 | 80.5 | 7 | 2.50 | 30 | 2.50 | 7.5 | 17.5 | 10,120 | 0.227 | 675 | 3,000 |
Phlox 228 | 116.99 | 110.83 | 227.82 | 60.5 | 19 | 2.80 | 18 | 2.80 | 14 | 19.6 | 21,200 | 0.3 | 1,244 | 2,000 |
Pastel 228 | 43.1 | 184.72 | 227.82 | 101 | 7 | 2.80 | 30 | 2.80 | 8.4 | 19.6 | 12,680 | 0.18 | 848 | 2,000 |
Phlox 288 | 148.07 | 140.28 | 288.35 | 76.6 | 19 | 3.15 | 18 | 3.15 | 15.75 | 22.05 | 26,800 | 0.237 | 1,570 | 2,000 |
Pastel 288 | 54.55 | 233.8 | 288.35 | 127.7 | 7 | 3.15 | 30 | 3.15 | 9.45 | 22.05 | 16,050 | 0.142 | 1,074 | 2,000 |
Pastel 299 | 93.27 | 206.17 | 299.44 | 112.7 | 19 | 2.50 | 42 | 2.50 | 12.5 | 22.5 | 20,875 | 0.162 | 1,320 | 2,000 |
Phlox 94-1 | 42.12 | 51.95 | 94.07 | 28.4 | 19 | 1.68 | 15 | 2.10 | 8.4 | 12.8 | 8,035 | 0.642 | 481 | 4,000 |
Pastel412 | 85.95 | 325.72 | 411.67 | 178 | 19 | 2.40 | 32 | 3.60 | 12 | 26.4 | 20,830 | 0.103 | 1,593 | 2,500 |
AAAC
Bidhaa: allaluminum alloy conductors
Viwango: ASTM B 399
Mchoro wa kawaida:
Nambari | Eneo | Saizi na kukwama kwa ACSR na kipenyo sawa | No.na kipenyo cha waya | Kwa jumla Kipenyo | Uzani | Nominal Kuvunja Mzigo | Kiwango Urefu | ||
Nominal | Halisi | ||||||||
MCM | mm² | AWG au MCM | Al/chuma | mm | mm | kilo/km | Kn | M ± 5 | |
Akron | 30.58 | 15.48 | 6 | 6/1 | 7 × 1.68 | 5.04 | 42.7 | 4.92 | 3,000 |
Alton | 48.69 | 24.71 | 4 | 6/1 | 7 × 2.12 | 6.35 | 68 | 7.84 | 3,000 |
Ames | 77.47 | 39.22 | 2 | 6/1 | 7 × 2.67 | 8.02 | 108 | 12.45 | 2,000 |
Azusa | 123.3 | 62.38 | 1/0 | 6/1 | 7 × 3.37 | 10.11 | 172 | 18.97 | 2,000 |
Anaheim | 155.4 | 78.65 | 2/0 | 6/1 | 7 × 3.78 | 11.35 | 217 | 23.93 | 3,000 |
Amherst | 195.7 | 99.22 | 3/0 | 6/1 | 7 × 4.25 | 12.75 | 273 | 30.18 | 2,500 |
Muungano | 246.9 | 125.1 | 4/0 | 6/1 | 7 × 4.77 | 14.31 | 345 | 38.05 | 2,000 |
Butte | 312.8 | 158.6 | 266.8 | 26/7 | 19 × 3.26 | 16.3 | 437 | 48.76 | 3,000 |
Canton | 394.5 | 199.9 | 336.4 | 26/7 | 19 × 3.66 | 18.3 | 551 | 58.91 | 2,500 |
Cairo | 465.4 | 235.8 | 397.5 | 26/7 | 19 × 3.98 | 19.88 | 650 | 69.48 | 2,000 |
Darien | 559.5 | 283.5 | 477 | 26/7 | 19 × 4.36 | 21.79 | 781 | 83.52 | 2,000 |
Elgin | 652.4 | 330.6 | 556.5 | 26/7 | 19 × 4.71 | 23.54 | 911 | 97.42 | 1,500 |
Flint | 740.8 | 375.3 | 636 | 26/7 | 37 × 3.59 | 25.16 | 1,035 | 108.21 | 3,000 |
Greeley | 927.2 | 469.8 | 795 | 26/7 | 37 × 4.02 | 28.14 | 1,295 | 135.47 | 2,500 |
AAAC
Bidhaa: conductors allaluminum alloy
Viwango: ASTM B 399
Mchoro wa kawaida:
Eneo | Stranding na kipenyo cha waya | Takriban. Kwa jumla Kipenyo | Uzani | Nominal Kuvunja Mzigo | Nominenal dc Upinzani saa 20 ℃ | Kiwango Urefu | |
Nominal | Halisi | ||||||
Awg au MCM | mm² | mm | mm | kilo/km | Kn | Ohm/km | M ± 5 |
6 | 13.3 | 7/1.554 | 4.67 | 37 | 4.22 | 2.5199 | 3,500 |
4 | 21.15 | 7/1.961 | 5.89 | 58 | 6.71 | 1.5824 | 3,000 |
2 | 33.63 | 7/2.474 | 7.42 | 93 | 10.68 | 0.9942 | 2,500 |
1/0 | 53.48 | 7/3.119 | 9.36 | 148 | 16.97 | 0.6256 | 2,000 |
2/0 | 67.42 | 7/3.503 | 10.51 | 186 | 20.52 | 0.4959 | 3,500 |
3/0 | 85.03 | 7/3.932 | 11.8 | 234 | 25.86 | 0.3936 | 3,000 |
4/0 | 107.23 | 7/4.417 | 13.26 | 296 | 32.63 | 0.3119 | 2,000 |
250 | 126.66 | 19/2.913 | 14.57 | 349 | 38.93 | 0.2642 | 2,000 |
300 | 152.1 | 19/3.193 | 15.97 | 419 | 46.77 | 0.2199 | 3,000 |
350 | 177.35 | 19/3.447 | 17.24 | 489 | 52.25 | 0.1887 | 3,000 |
400 | 202.71 | 19/3.686 | 18.43 | 559 | 59.74 | 0.165 | 2,500 |
450 | 228 | 19/3.909 | 19.55 | 629 | 67.19 | 0.1467 | 2,000 |
500 | 253.35 | 19/4.120 | 20.6 | 698 | 74.64 | 0.1321 | 2,000 |
550 | 278.6 | 37/3.096 | 21.67 | 768 | 83.8 | 0.1202 | 2,000 |
600 | 303.8 | 37/3.233 | 22.63 | 838 | 91.38 | 0.1102 | 2,000 |
650 | 329.25 | 37/3.366 | 23.56 | 908 | 97.94 | 0.1016 | 2,000 |
700 | 354.55 | 37/3.493 | 24.45 | 978 | 102.2 | 0.0944 | 3,500 |
750 | 380.2 | 37/3.617 | 25.32 | 1,049 | 109.6 | 0.088 | 3,000 |
800 | 405.15 | 37/3.734 | 26.14 | 1,117 | 116.8 | 0.0826 | 3,000 |
900 | 456.16 | 37/3.962 | 27.73 | 1,258 | 131.5 | 0.0733 | 3,000 |
1,000 | 506.71 | 37/4.176 | 29.23 | 1,399 | 146.1 | 0.066 | 2,500 |
AAAC
Bidhaa: conductors allaluminum alloy
Viwango: BS EN 50182
Mchoro wa kawaida:
Nambari | Eneo | Stranding na waya Dia. | Takriban. Kipenyo cha Oyerall | Uzani | Nominal Kuvunja Mzigo | Nominenal dc Upinzani saa 20 ℃ | Kiwango Urefu | |
Nominal | Halisi | |||||||
mm² | mm² | mm | mm | kilo/km | Kn | Ohm/km | M ± 5 | |
10 | 11.9 | 7/1.47 | 4.41 | 32 | 3.33 | 2.277 | 2,500 | |
Sanduku | 15 | 18.8 | 7/1.85 | 5.55 | 51 | 5.27 | 1.749 | 2,000 |
Acacia | 20 | 23.9 | 7/2.08 | 6.24 | 65 | 6.7 | 1.384 | 2,500 |
Mlozi | 25 | 30.1 | 7/2.34 | 7.02 | 82 | 8.44 | 1.094 | 2,000 |
Ceda | 30 | 35.5 | 7/2.54 | 7.62 | 97 | 9.95 | 0.9281 | 2,000 |
35 | 42.2 | 7/2.77 | 8.31 | 115 | 11.83 | 0.78 | 2,000 | |
Fir | 40 | 47.8 | 7/2.95 | 8.85 | 131 | 13.4 | 0.688 | 2,500 |
Hazel | 50 | 59.9 | 7/3.30 | 9.9 | 164 | 16.8 | 0.5498 | 2,000 |
PINE | 60 | 71.7 | 7/3.61 | 10.83 | 196 | 20.1 | 0.4595 | 3,000 |
70 | 84.1 | 7/3.91 | 11.73 | 230 | 23.57 | 0.3917 | 3,000 | |
Willow | 75 | 89.8 | 7/4.04 | 12.12 | 246 | 25.17 | 0.3669 | 2,500 |
80 | 96.5 | 7/4.19 | 12.57 | 264 | 27.04 | 0.341 | 2,500 | |
90 | 108.8 | 7/4.45 | 13.35 | 298 | 30.5 | 0.3026 | 2,000 | |
Oak | 100 | 118.9 | 7/4.65 | 13.95 | 325 | 33.3 | 0.2769 | 2,000 |
100 | 118.7 | 19/2.82 | 14.1 | 326 | 33.3 | 0.2786 | 2,000 | |
Mulberry | 125 | 151.1 | 19/3.18 | 15.9 | 415 | 42.3 | 0.219 | 3,000 |
Majivu | 150 | 180.7 | 19/3.48 | 17.4 | 497 | 50.6 | 0.183 | 3,000 |
Elm | 175 | 211 | 19/3.76 | 18.8 | 580 | 59.1 | 0.1568 | 2,500 |
Poplar | 200 | 239 | 37/2.87 | 20.09 | 660 | 67 | 0.1387 | 2,500 |
225 | 270.3 | 37/3.05 | 21.35 | 744 | 75.7 | 0.1224 | 2,000 | |
Sycamore | 250 | 303 | 37/3.23 | 22.61 | 835 | 84.9 | 0.1094 | 2,000 |
UPAS | 300 | 362.1 | 37/3.53 | 24.71 | 998 | 101.5 | 0.09155 | 2,000 |
350 | 421.8 | 37/3.81 | 26.67 | 1163 | 118.2 | 0.0786 | 3,000 | |
Yew | 400 | 479.9 | 37/4.06 | 28.42 | 1323 | 134.5 | 0.06908 | 2,500 |
