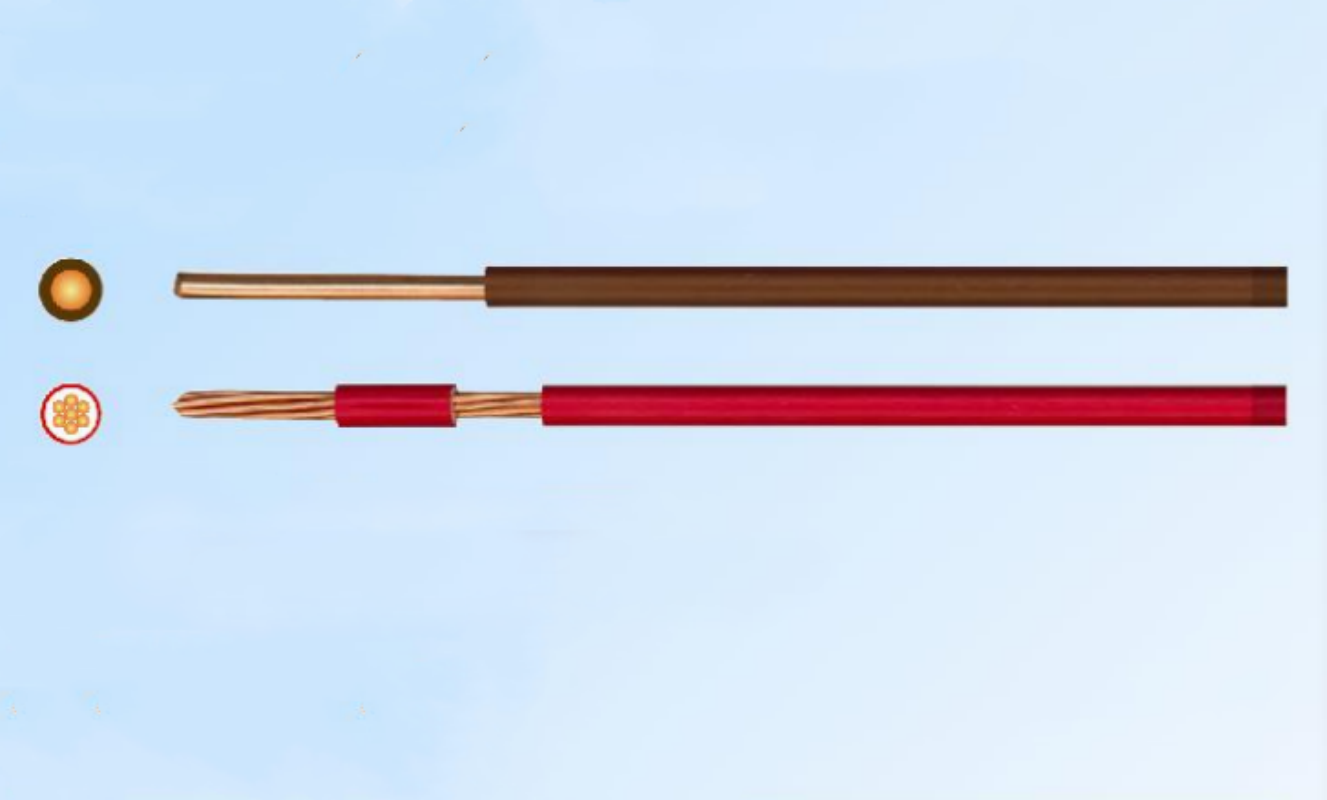

H07Z-U/R.
450/750V
Nambari
: H07Z-U/R.
Kiwango: Cenelec HD 22.9.BS 7211
Construcion: 1-solid au conductor ya shaba
2-maalum LSFOH Thermosetting insulation
Maombi: Sehemu ambazo kuna hatari ya moto na maeneo yaliyojaa kama maduka makubwa, vituo vya biashara, hoteli,
shule, vichungi nk.
Takwimu za kiufundi: Max.Uendeshaji wa joto 70 ℃
Nominal Msalaba sehemu | Nambari na Dia.of waya | Unene ya insulation | Wastani wa kipenyo | Takriban jumla ya uzito | Upinzani wa conductor DC saa 20 ℃ | Mas. Sasa Kubeba Uwezo saa 30 ℃ |
mm² | No. × mm | mm | mm | Kilo/km | Ω/km | Hewa a |
H⁰7Z-U | ||||||
1.5 | 1.35 | 0.7 | 2.8 | 20.0 | 12.1 | 25 |
2.5 | 1.73 | 0.8 | 3.4 | 31.2 | 7.41 | 34 |
4 | 2.19 | 0.8 | 3.8 | 45.1 | 4.61 | 45 |
6 | 2.68 | 0.8 | 4.3 | 63.8 | 3.08 | 57 |
H⁰7z-r | ||||||
1.5 | 7 × 0.51 | 0.7 | 3.0 | 21.5 | 12.1 | 25 |
2.5 | 7 × 0.66 | 0.8 | 3.6 | 32.9 | 7.41 | 34 |
4 | 7 × 0.83 | 0.8 | 4.1 | 47.7 | 4.61 | 45 |
6 | 7 × 1.02 | 0.8 | 4.7 | 67.8 | 3.08 | 57 |
10 | 7 × 1.34 | 1.0 | 5.9 | 109.2 | 1.83 | 75 |
16 | 7 × 1.70 | 1.0 | 7.0 | 167.6 | 1.15 | 100 |
25 | 7 × 2.20 | 1.2 | 8.4 | 262.3 | 0.727 | 130 |
35 | 7 × 2.55 | 1.2 | 9.4 | 348.1 | 0.524 | 160 |
50 | 7 × 3.00 | 1.4 | 10.9 | 471.6 | 0.387 | 200 |
