Yjv
8544601290

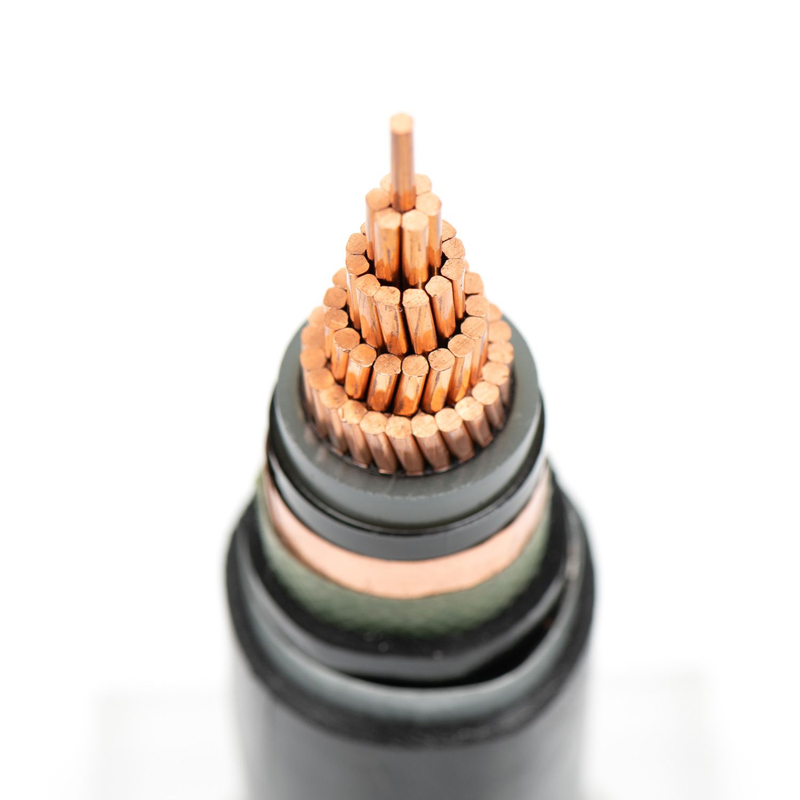

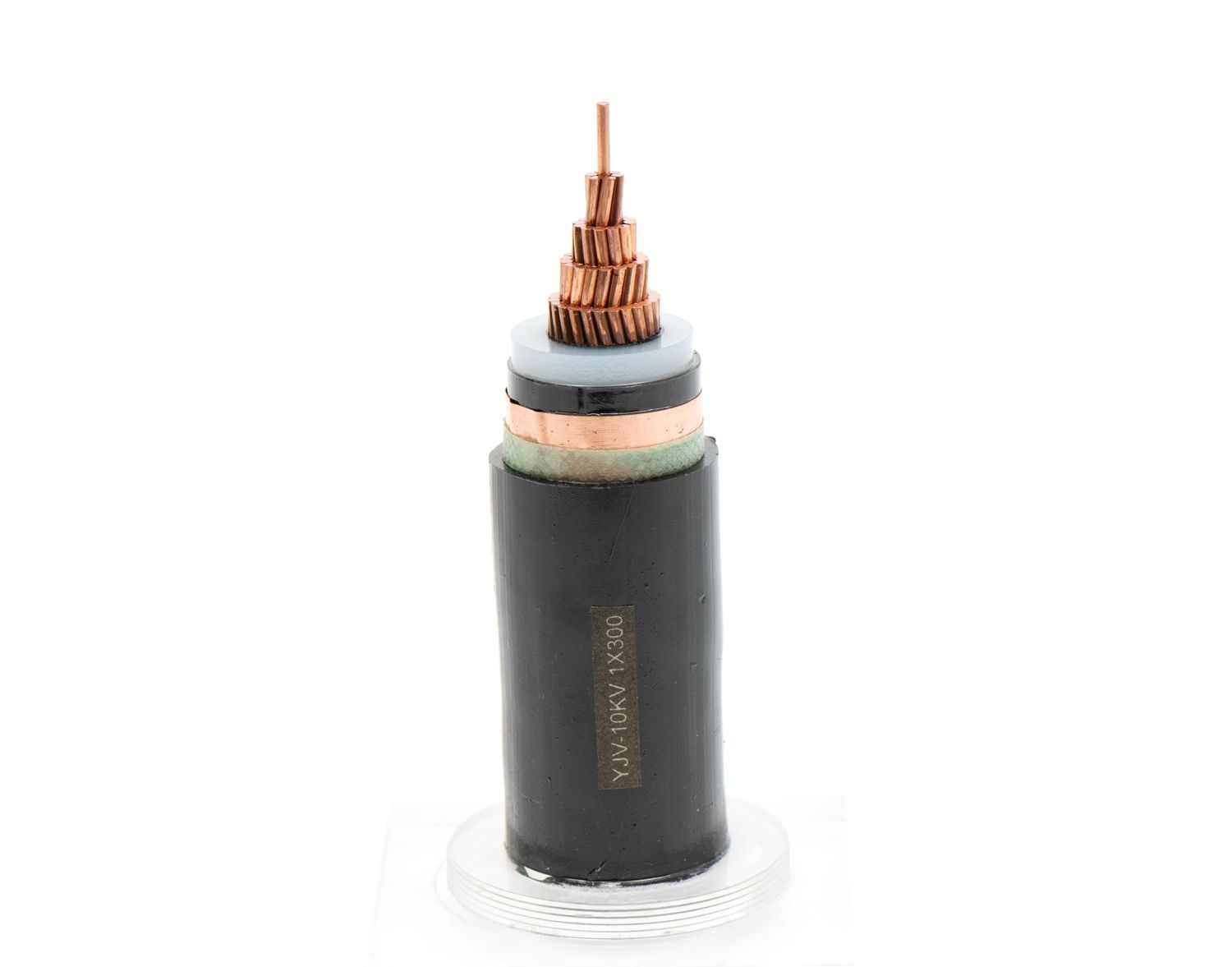

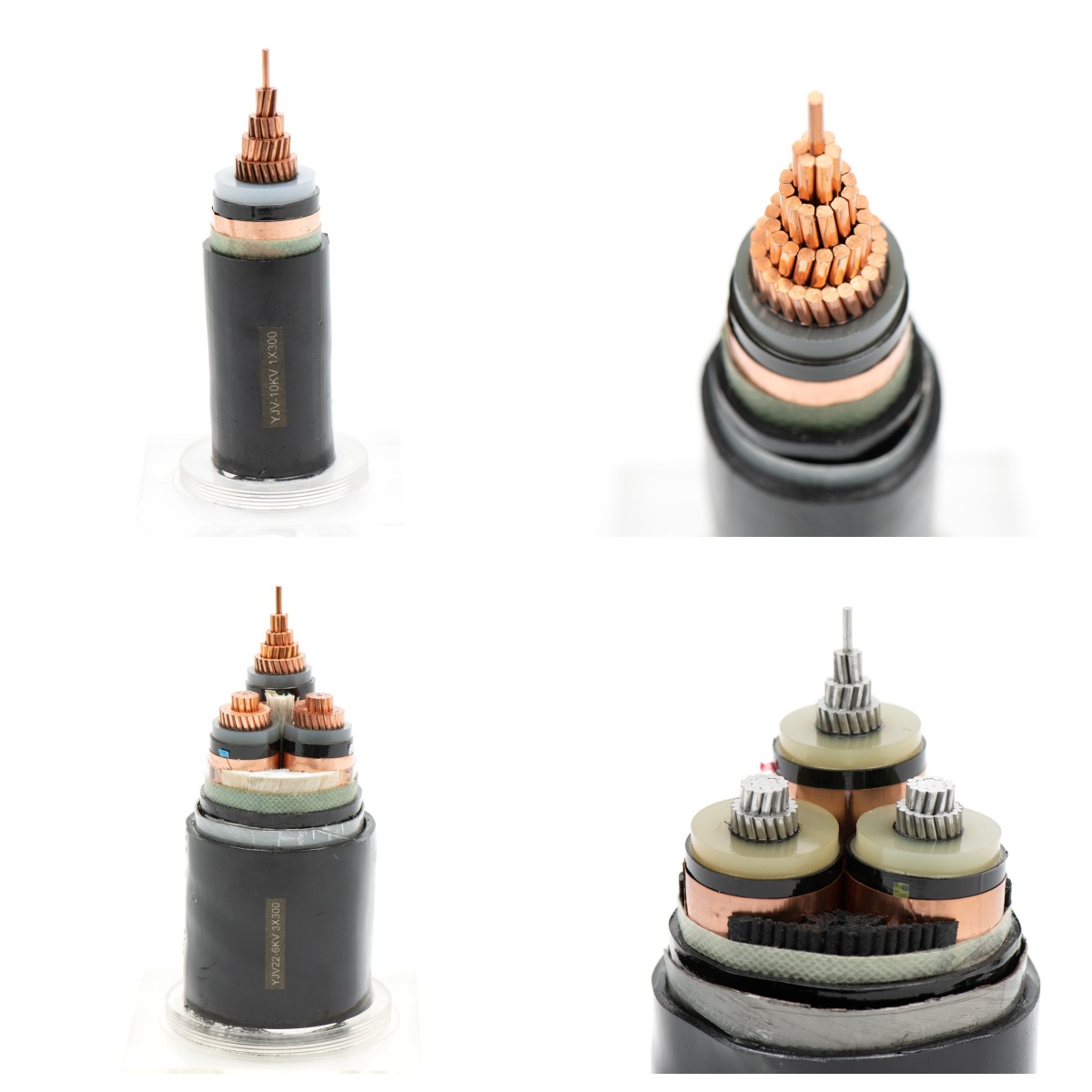

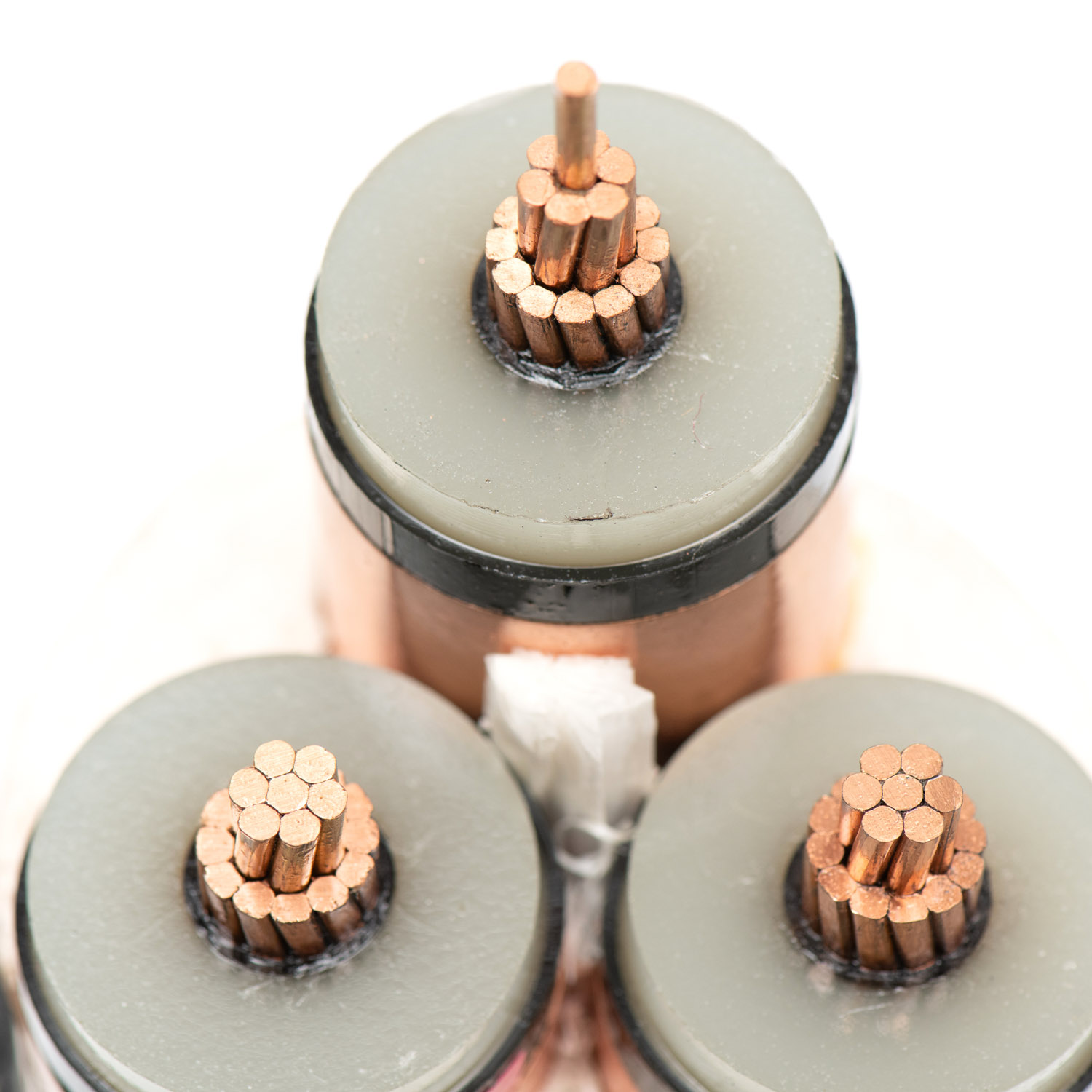

Aina: Voltage ya kati (MV) cable ya nguvu, na viwango vya voltage kuanzia 1kV hadi 36kV (kuzingatia 6kV, 6/10 (12) kV)
Mfano: YJV
Nambari: 8544601290
Muundo wa Core: conductor ya juu-safi ya shaba/aluminium (inayoambatana na IEC 60228), safu ya skrini ya conductor, safu ya insulation ya XLPE/EPR, safu ya skrini ya insulation, safu ya Shield ya Metallic, Sheath ya nje (PVC/LSZH/HDPE)
Sehemu ya sehemu ya msalaba: [25-630] mm²
Mitandao ya Usambazaji wa Nguvu: Viingilio, Transfoma, na switchgear
Sehemu za Viwanda: Madini, Mafuta na Gesi, na Vifaa vya Viwanda
Nishati mbadala: Mashamba ya upepo, mbuga za jua, na vituo vya umeme
Miundombinu: Mifumo ya chini ya ardhi, viwanja vya ndege, na hospitali
Ufanisi: Upotezaji wa chini wa dielectric huchangia kupunguzwa kwa taka za nishati, kuongeza ufanisi wa jumla.
Uimara: sugu kwa unyevu, kemikali, mionzi ya UV, na abrasion, kuhakikisha utendaji wa muda mrefu katika mazingira anuwai.
Usalama: Vifaa vya moto na vya moshi wa chini hutumiwa, na kuifanya ifaike kwa nafasi zilizowekwa.
Kubadilika: Silaha (chuma waya wa chuma SWA/Tape Armoring ATA) na chaguzi zisizo na silaha zinapatikana ili kukidhi mahitaji tofauti ya ufungaji.
Maisha ya muda mrefu:> Miaka 30 chini ya hali ya kawaida ya kufanya kazi.
Viwango vya Kimataifa: IEC 60502, IEC 60228
Viwango vya Viwanda: IEEE 386, IEEE 575, AEIC CS8, NEMA WC 74
Operesheni ya kawaida: XLPE (-40 ° C hadi +90 ° C); EPR (-50 ° C hadi +105 ° C)
Mzunguko mfupi: hadi +250 ° C (wote XLPE na EPR)
| Mali ya Uainishaji wa | Mali |
|---|---|
| Upinzani wa insulation | > 1000 MΩ · km kwa 20 ° C. |
| Nguvu ya dielectric | 3.5-30 kV/mm (kulingana na daraja la voltage) |
| Upinzani wa moto | 'IEC 60332 (Moto Retardant), IEC 61034 (moshi wa chini) ' |
| Upinzani wa kuponda | > 10 kN/m (iliyojaribiwa kwa IEC 60229) |
| Conductor nominenal eneo (mm²) | unene wa insulation (mm) | unene wa nje wa sheath (mm) | takriban. Kipenyo cha jumla (mm) | takriban. Uzito wa cable (kg/km) | urefu wa kawaida kwa ngoma (m) | |
|---|---|---|---|---|---|---|
| Shaba | Aluminium | |||||
| 16 | 3.4 | 1.8 | 20 | 450 | 350 | 500 |
| 25 | 3.4 | 1.8 | 21 | 560 | 400 | 500 |
| 35 | 3.4 | 1.8 | 22 | 680 | 460 | 500 |
| 50 | 3.4 | 1.8 | 24 | 810 | 520 | 500 |
| 70 | 3.4 | 1.8 | 25 | 1,050 | 620 | 500 |
| 95 | 3.4 | 1.8 | 27 | 1,320 | 730 | 500 |
| 120 | 3.4 | 1.8 | 28 | 1,580 | 840 | 500 |
| 150 | 3.4 | 1.9 | 30 | 1,880 | 960 | 500 |
| 185 | 3.4 | 1.9 | 32 | 2,250 | 1,100 | 500 |
| 240 | 3.4 | 2.0 | 34 | 2,870 | 1,350 | 500 |
| 300 | 3.4 | 2.1 | 37 | 3,490 | 1,580 | 500 |
| 400 | 3.4 | 2.2 | 40 | 4,350 | 1,920 | 500 |
| 500 | 3.4 | 2.3 | 44 | 5,440 | 2,320 | 500 |
| 630 | 3.4 | 2.4 | 48 | 6,860 | 2,830 | 500 |
| 800 | 3.4 | 2.5 | 52 | 8,600 | 3,430 | 400 |
| 1.000 | 3.4 | 2.6 | 56 | 10,630 | 4,150 | 300 |
| Conductor nominenal eneo (mm²) | unene wa insulation (mm) | unene wa nje wa sheath (mm) | takriban. Kipenyo cha jumla (mm) | Approx.cable uzito (kg/km) | urefu wa kawaida kwa ngoma (m) | |
|---|---|---|---|---|---|---|
| Shaba | Aluminium | |||||
| 16 | 3.4 | 2.1 | 39 | 1,410 | 1,110 | 500 |
| 25 | 3.4 | 2.2 | 42 | 1,800 | 1,320 | 500 |
| 35 | 3.4 | 2.3 | 45 | 2,170 | 1,500 | 500 |
| 50 | 3.4 | 2.4 | 47 | 2,630 | 1,730 | 500 |
| 70 | 3.4 | 2.5 | 51 | 3,400 | 2,110 | 500 |
| 95 | 3.4 | 2.6 | 55 | 4,310 | 2,510 | 500 |
| 120 | 3.4 | 2.7 | 58 | 5,150 | 2,860 | 500 |
| 150 | 3.4 | 2.9 | 62 | 6,100 | 3,300 | 500 |
| 185 | 3.4 | 3.0 | 66 | 7,310 | 3,810 | 500 |
| 240 | 3.4 | 3.1 | 71 | 9,290 | 4,680 | 400 |
| 300 | 3.4 | 3.3 | 76 | 11,240 | 5,450 | 300 |
| 400 | 3.4 | 3.5 | 83 | 14,040 | 6,660 | 250 |
| 500 | 3.4 | 3.7 | 91 | 17,530 | 8,050 | 200 |
| Eneo la conductor nominella (mm²) | unene wa insulation (mm) | takriban.inner kufunika unene (mm) | saizi ya waya ya waya (mm) | unene wa nje wa sheath (mm) | takriban. Kipenyo cha jumla (mm) | takriban. Uzito wa cable (kg/km) | urefu wa kawaida kwa ngoma (m) | |
|---|---|---|---|---|---|---|---|---|
| Shaba | Aluminium | |||||||
| 16 | 3.4 | 1.2 | 1.6 | 1.8 | 26 | 770 | 670 | 500 |
| 25 | 3.4 | 1.2 | 1.6 | 1.8 | 27 | 910 | 750 | 500 |
| 35 | 3.4 | 1.2 | 1.6 | 1.8 | 28 | 1,040 | 820 | 500 |
| 50 | 3.4 | 1.2 | 1.6 | 1.8 | 29 | 1,190 | 900 | 500 |
| 70 | 3.4 | 1.2 | 1.6 | 1.9 | 31 | 1,470 | 1,040 | 500 |
| 95 | 3.4 | 1.2 | 1.6 | 2.0 | 33 | 1,780 | 1,190 | 500 |
| 120 | 3.4 | 1.2 | 2.0 | 2.0 | 35 | 2,150 | 1,410 | 500 |
| 150 | 3.4 | 1.2 | 2.0 | 2.1 | 37 | 2,480 | 1,560 | 500 |
| 185 | 3.4 | 1.2 | 2.0 | 2.1 | 39 | 2,890 | 1,730 | 500 |
| 240 | 3.4 | 1.2 | 2.0 | 2.2 | 41 | 3,570 | 2,050 | 500 |
| 300 | 3.4 | 1.2 | 2.0 | 2.3 | 44 | 4,230 | 2,330 | 500 |
| 400 | 3.4 | 1.3 | 2.5 | 2.4 | 48 | 5,320 | 2,890 | 500 |
| 500 | 3.4 | 1.3 | 2.5 | 2.5 | 52 | 6,500 | 3,380 | 500 |
| 630 | 3.4 | 1.4 | 2.5 | 2.6 | 56 | 8,020 | 3,990 | 400 |
| Conductor nominella eneo (mm²) | unene wa insulation (mm) | takriban. Unene wa kufunika ndani (mm) | saizi ya waya wa silaha (mm) | unene wa nje wa sheath (mm) | takriban. Kipenyo cha jumla (mm) | takriban. Uzito wa cable (kg/km) | urefu wa kawaida kwa ngoma (m) | |
|---|---|---|---|---|---|---|---|---|
| Shaba | Aluminium | |||||||
| 16 | 3.4 | 1.3 | 2.5 | 2.4 | 47 | 3,700 | 2,700 | 500 |
| 25 | 3.4 | 1.3 | 2.5 | 2.5 | 50 | 3,900 | 3,430 | 500 |
| 35 | 3.4 | 1.3 | 2.5 | 2.6 | 53 | 4,430 | 3,770 | 500 |
| 50 | 3.4 | 1.4 | 2.5 | 2.7 | 56 | 5,080 | 4,190 | 500 |
| 70 | 3.4 | 1.5 | 2.5 | 2.8 | 60 | 6,050 | 4,750 | 500 |
| 95 | 3.4 | 1.5 | 2.5 | 2.9 | 64 | 7,180 | 5,380 | 500 |
| 120 | 3.4 | 1.6 | 2.5 | 3.0 | 67 | 8,230 | 5,960 | 400 |
| 150 | 3.4 | 1.7 | 3.15 | 3.2 | 72 | 10,100 | 6,580 | 300 |
| 185 | 3.4 | 1.7 | 3.15 | 3.3 | 76 | 11,610 | 8,110 | 300 |
| 240 | 3.4 | 1.8 | 3.15 | 3.5 | 82 | 14,110 | 9,510 | 250 |
| 300 | 3.4 | 1.9 | 3.15 | 3.7 | 87 | 16,420 | 10,630 | 200 |
| 400 | 3.4 | 2.0 | 4.0 | 4.0 | 96 | 21,700 | 12,880 | 200 |
| 500 | 3.4 | 2.2 | 4.0 | 4.2 | 104 | 25,280 | 15,800 | 200 |
| Eneo la conductor nominella (mm²) | unene wa insulation (mm) | takriban.inner kufunika unene (mm) | saizi ya waya ya waya (mm) | unene wa nje wa sheath (mm) | takriban. Kipenyo cha jumla (mm) | takriban. Uzito wa cable (kg/km) | urefu wa kawaida kwa ngoma (m) | |
|---|---|---|---|---|---|---|---|---|
| Shaba | Aluminium | |||||||
| 16 | 3.4 | 1.2 | 0.5 | 1.8 | 25 | 680 | 580 | 500 |
| 25 | 3.4 | 1.2 | 0.5 | 1.8 | 26 | 810 | 650 | 500 |
| 35 | 3.4 | 1.2 | 0.5 | 1.8 | 27 | 940 | 720 | 500 |
| 50 | 3.4 | 1.2 | 0.5 | 1.8 | 28 | 1,090 | 790 | 500 |
| 70 | 3.4 | 1.2 | 0.5 | 1.9 | 30 | 1,350 | 920 | 500 |
| 95 | 3.4 | 1.2 | 0.5 | 1.9 | 32 | 1,650 | 1,060 | 500 |
| 120 | 3.4 | 1.2 | 0.5 | 2.0 | 33 | 1,940 | 1,190 | 500 |
| 150 | 3.4 | 1.2 | 0.5 | 2.0 | 35 | 2,240 | 1,320 | 500 |
| 185 | 3.4 | 1.2 | 0.5 | 2.1 | 37 | 2,650 | 1,500 | 500 |
| 240 | 3.4 | 1.2 | 0.5 | 2.1 | 39 | 3,290 | 1,770 | 500 |
| 300 | 3.4 | 1.2 | 0.5 | 2.2 | 41 | 3,940 | 2,030 | 500 |
| 400 | 3.4 | 1.3 | 0.5 | 2.3 | 45 | 4,860 | 2,430 | 500 |
| 500 | 3.4 | 1.3 | 0.5 | 2.4 | 49 | 5,990 | 2,880 | 500 |
| 630 | 3.4 | 1.4 | 0.5 | 2.5 | 52 | 7,480 | 3,450 | 500 |
| ya Conductor Eneo la Nominal (mm²) | Unene wa insulation (mm) | takriban.Inner kufunika unene (mm) | saizi ya waya ya waya (mm) | unene wa sheath (mm) | takriban. Kipenyo cha jumla (mm) | takriban. Uzito wa cable (kg/km) | urefu wa kawaida kwa ngoma (m) | |
|---|---|---|---|---|---|---|---|---|
| Shaba | Aluminium | |||||||
| 16 | 3.4 | 1.3 | 0.2 | 2.3 | 44 | 2,220 | 1,900 | 500 |
| 25 | 3.4 | 1.3 | 0.5 | 2.4 | 47 | 2,660 | 2,180 | 500 |
| 35 | 3.4 | 1.3 | 0.5 | 2.5 | 50 | 3,110 | 2,440 | 500 |
| 50 | 3.4 | 1.4 | 0.5 | 2.6 | 53 | 3,650 | 2,750 | 500 |
| 70 | 3.4 | 1.5 | 0.5 | 2.7 | 56 | 4,510 | 3,220 | 500 |
| 95 | 3.4 | 1.5 | 0.5 | 2.8 | 60 | 5,510 | 3,710 | 500 |
| 120 | 3.4 | 1.6 | 0.5 | 2.9 | 64 | 6,450 | 4,180 | 500 |
| 150 | 3.4 | 1.7 | 0.5 | 3.1 | 68 | 7,500 | 4,700 | 400 |
| 185 | 3.4 | 1.7 | 0.5 | 3.2 | 71 | 8,830 | 5,330 | 400 |
| 240 | 3.4 | 1.8 | 0.5 | 3.3 | 77 | 10,960 | 6,360 | 300 |
| 300 | 3.4 | 1.9 | 0.5 | 3.5 | 82 | 13,090 | 7,300 | 250 |
| 400 | 3.4 | 2.0 | 0.8 | 3.8 | 91 | 16,910 | 9,530 | 200 |
| 500 | 3.4 | 2.2 | 0.8 | 4.0 | 99 | 20,720 | 11,250 | 200 |
Ufungaji: Ngoma za mbao au reels zilizoimarishwa na chuma na kufunika kwa maji.
Kuweka alama: Alama zinazofuatana na IEC pamoja na voltage, saizi, na tarehe ya utengenezaji.
Usafirishaji: Vyombo vinavyoendana na ISO na usalama wa mshtuko.
Hifadhi: Inapaswa kuhifadhiwa katika mazingira kavu, yenye hewa na epuka jua moja kwa moja.
